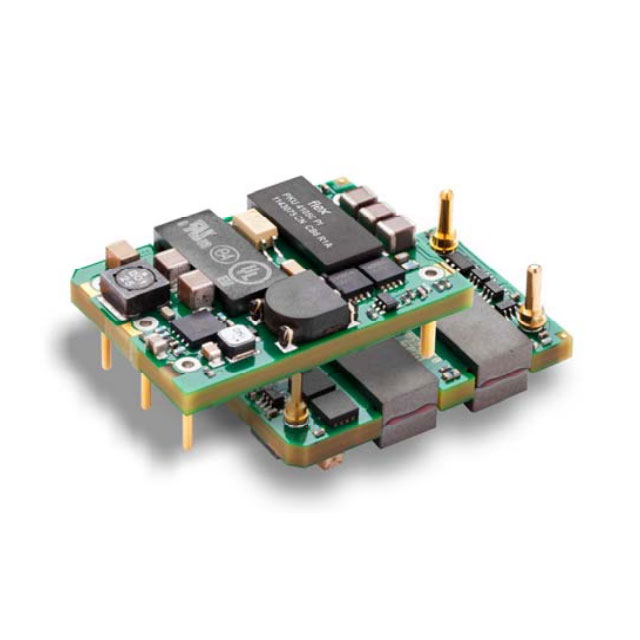

PKU4105CSI

Obsolete

Flex Power Modules

DC DC CONVERTER 5V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKU4105CSI

Obsolete

Flex Power Modules

DC DC CONVERTER 5V 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PKU4105CSI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	20 A
Efficiency	93.6 %
Features	Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	100 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	0.33 in
Size / Dimension [z]	8.5 mm
Standard Number	62368-1
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

PKU410 Series

Part	Current - Output (Max) [Max]	Features	Package / Case	Approval Agency	Voltage - Output 1	Efficiency	Voltage - Isolation	Power (Watts)	Supplier Device Package	Applications	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Control Features	Voltage - Input (Max) [Max]	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]
Flex Power Modules PKU4107CPI	16 A	Remote On/Off	Sixteenth Brick	CB CSA IEC TUV UL	6 V	93.5 %	1.5 kV	96 W	Sixteenth Brick	ITE (Commercial)	1	36 V	Through Hole	Active Low Enable	75 V	Isolated Module	33 mm	1.3 "	0.33 in	8.5 mm	0.9 "	22.9 mm	62368-1	-40 °C	105 C
Flex Power Modules PKU4105CPI	20 A	Remote On/Off	Sixteenth Brick	CB CSA IEC TUV UL	5 V	93.6 %	1.5 kV	100 W	Sixteenth Brick	ITE (Commercial)	1	36 V	Through Hole	Active Low Enable	75 V	Isolated Module	33 mm	1.3 "	0.33 in	8.5 mm	0.9 "	22.9 mm	62368-1	-40 °C	125 °C
Flex Power Modules PKU4106CSI	18 A	Remote On/Off	Sixteenth Brick	CB CSA IEC TUV UL	5.5 V	93.7 %	1.5 kV	99 W	Sixteenth Brick	ITE (Commercial)	1	45 V	Surface Mount	Active Low Enable	75 V	Isolated Module	33 mm	1.3 "	0.33 in	8.5 mm	0.9 "	22.9 mm	62368-1	-40 °C	125 °C
Flex Power Modules PKU4105CSI	20 A	Remote On/Off	Sixteenth Brick	CB CSA IEC TUV UL	5 V	93.6 %	1.5 kV	100 W	Sixteenth Brick	ITE (Commercial)	1	36 V	Surface Mount	Active Low Enable	75 V	Isolated Module	33 mm	1.3 "	0.33 in	8.5 mm	0.9 "	22.9 mm	62368-1	-40 °C	125 °C
Flex Power Modules PKU4104CPI	8.3 A	Remote On/Off	Sixteenth Brick	CB CSA IEC TUV UL	12 V		1.5 kV	100 W	Sixteenth Brick	ITE (Commercial)	1	36 V	Through Hole	Active Low Enable	75 V	Isolated Module	33 mm	1.3 "	0.33 in	8.5 mm	0.9 "	22.9 mm	62368-1	-40 °C	125 °C
Flex Power Modules PKU4104CSI	8.3 A	Remote On/Off	Sixteenth Brick	CB CSA IEC TUV UL	12 V		1.5 kV	100 W	Sixteenth Brick	ITE (Commercial)	1	36 V	Surface Mount	Active Low Enable	75 V	Isolated Module	33 mm	1.3 "	0.33 in	8.5 mm	0.9 "	22.9 mm	62368-1	-40 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 42.58

Description

General part information

PKU410 Series

Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input
