1N2805A

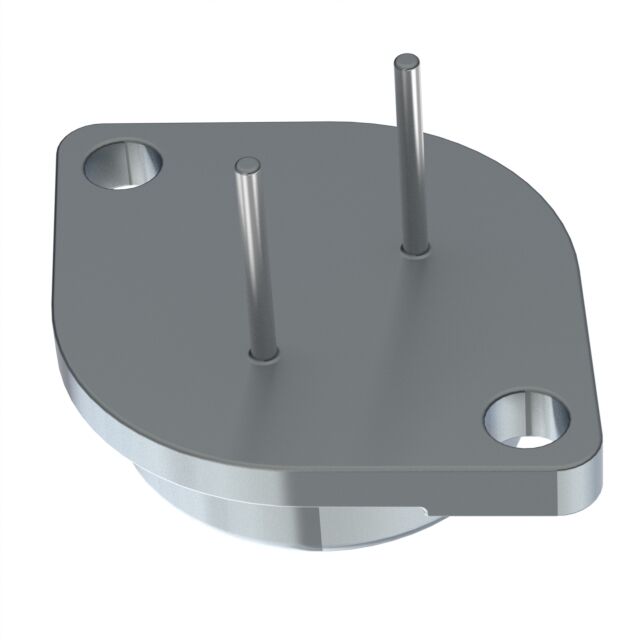

ActiveZENER DIODE SINGLE 3-PIN(2+TAB) 7.5V, 10%, 0.3OHM, 50000MW TO-3 TRAY
Deep-Dive with AI
Search across all available documentation for this part.
1N2805A
ActiveZENER DIODE SINGLE 3-PIN(2+TAB) 7.5V, 10%, 0.3OHM, 50000MW TO-3 TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N2805A | 1N2805 Series |
|---|---|---|
| - | - | |
| Impedance (Max) (Zzt) [Max] | 0.3 Ohms | 0.3 Ohms |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 347 °F | 347 °F |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Package / Case | TO-204AD | TO-204AD |
| Power - Max [Max] | 50 W | 50 W |
| Tolerance | 10 % | 5 - 10 % |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V | 1.5 V |
| Voltage - Zener (Nom) (Vz) | 7.5 V | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 82.24 | |
| Microchip Direct | N/A | 1 | $ 88.56 | |
| Newark | Each | 100 | $ 82.24 | |
| 500 | $ 79.08 | |||
1N2805 Series
Zener Diode Single 3-Pin(2+Tab) 7.5V, 5%, 0.3Ohm, 50000mW TO-3 Tray
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Power - Max [Max] | Mounting Type | Voltage - Forward (Vf) (Max) @ If | Impedance (Max) (Zzt) [Max] | Voltage - Zener (Nom) (Vz) |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N2805A | |||||||||
Microchip Technology 1N2805RB | TO-204AD | -65 ░C | 347 °F | 5 % | 50 W | Through Hole | 1.5 V | 0.3 Ohms | 7.5 V |
Microchip Technology 1N2805A | TO-204AD | -65 ░C | 347 °F | 10 % | 50 W | Through Hole | 1.5 V | 0.3 Ohms | 7.5 V |
Microchip Technology 1N2805B | |||||||||
Microchip Technology 1N2805B | TO-204AD | -65 ░C | 347 °F | 5 % | 50 W | Through Hole | 1.5 V | 0.3 Ohms | 7.5 V |
Microchip Technology 1N2805RB |
Description
General part information
1N2805 Series
This series of high power 50W Zener diodes, JEDEC registered 1N2804B through 1N2846B and 1N4557B through 1N4564B, provide voltage regulation in values from 3.9V to 200V broad range of voltages. They may be operated up to 50W with adequate mounting heat sinking due to their low thermal resistance. These Zeners are also available in JAN, JANTX and JANTXV military qualifications.
