Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS74001DPTEVM-713 | TPS74001 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 | 1 |
| Control Features | - | Enable |
| Current - Output | - | 1.5 A |
| Current - Output [Max] | 1.5 A | 1.5 A |
| Current - Quiescent (Iq) | - | 3 mA |
| Mounting Type | - | Surface Mount |
| Number of Regulators | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | Adjustable |
| Package / Case | - | 8-TSSOP, 8-MSOP |
| Package / Case | - | 0.118 in |
| Package / Case | - | 3 mm |
| Protection Features | - | Under Voltage Lockout (UVLO), Over Current, Over Temperature |
| Regulator Type | Positive Adjustable | Positive Adjustable |
| Supplied Contents | Board(s) | Board(s) |
| Utilized IC / Part | TPS74001DPT | TPS74001DPT |
| Voltage - Input (Max) | - | 6 V |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 1.2 VDC | 1.2 VDC |
| Voltage - Output | 1.5 V | 1.5 V |
| Voltage - Output (Max) | - | 3.6 V |
| Voltage - Output (Min/Fixed) | - | 0.9 V |
| Voltage Dropout (Max) | - | 0.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS74001 Series
1.5-A, low-VIN (1.2-V), ultra-low-dropout voltage regulator
| Part | Control Features | Number of Regulators | Voltage - Input (Max) [Max] | Mounting Type | Voltage Dropout (Max) | Package / Case | Package / Case | Package / Case | Current - Output | Output Configuration | Voltage - Output (Min/Fixed) [Min] | Protection Features | Output Type | Voltage - Output (Max) [Max] | Current - Quiescent (Iq) | Operating Temperature [Max] | Operating Temperature [Min] | Channels per IC | Supplied Contents | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Type | Utilized IC / Part | Board Type | Current - Output [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS74001DGKRThe TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
The TPS740xx is available in an 8-pin power MSOP package and a 5-pin Jr S-PAK. Its operating temparature range is –40°C to +125°C.
The TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
The TPS740xx is available in an 8-pin power MSOP package and a 5-pin Jr S-PAK. Its operating temparature range is –40°C to +125°C. | Enable | 1 | 6 V | Surface Mount | 0.3 V | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 1.5 A | Positive | 0.9 V | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Adjustable | 3.6 V | 3 mA | 125 °C | -40 °C | |||||||||

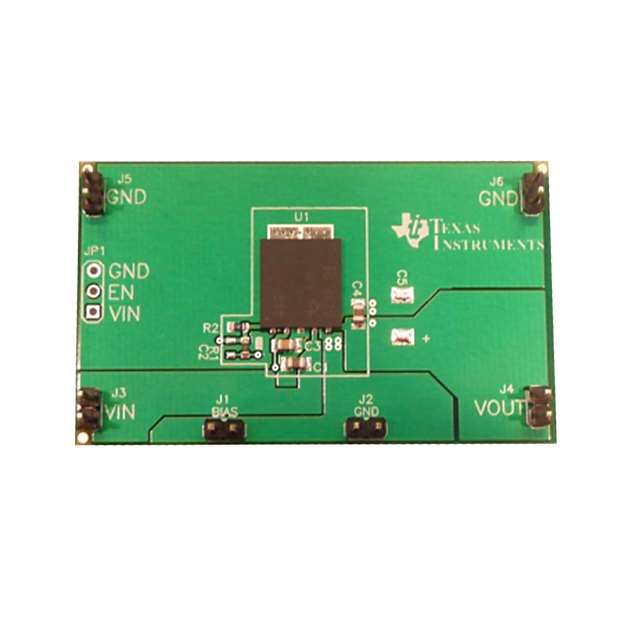

Texas Instruments TPS74001DPTEVM-713TPS74001DPT 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board | 1 | Board(s) | 1.5 V | 1.2 VDC | 5.5 V | Positive Adjustable | TPS74001DPT | Fully Populated | 1.5 A |
Description
General part information
TPS74001 Series
The TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
