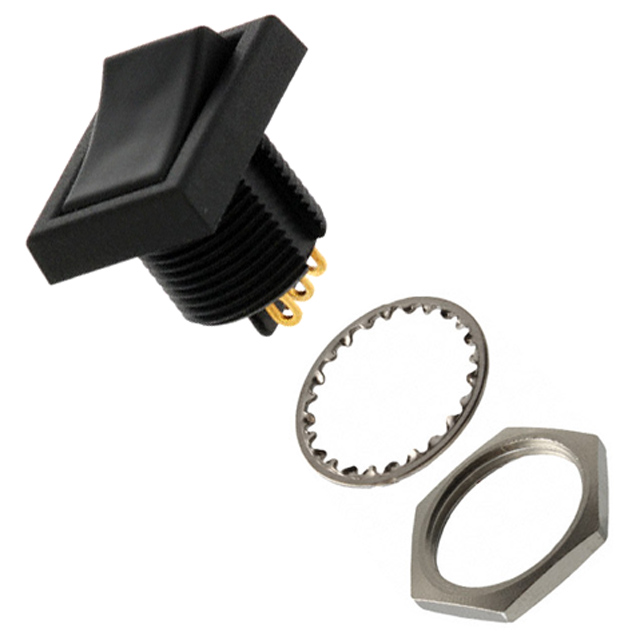

TRD11D10WL

Active

TE Connectivity Raychem Cable Protection

SWITCH ROCKER SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH ROCKER SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	TRD11D10WL

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	80000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Color - Actuator/Cap	Switch Function	Mounting Type	Voltage Rating - DC	Termination Style	Mechanical Life	Current Rating (Amps)	Illumination Type, Color	Circuit	Illumination Voltage (Nominal)	Electrical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Marking
TE Connectivity Raychem Cable Protection TRD11D10WLLR504	Black	On-On	Panel Mount Threaded Body with Nut	20 V	Solder Lug	100000 Cycles	0.4 VA	Green LED	SPDT	2.8 VDC	80000 Cycles	Concave (Curved) - Illuminated	-20 C	80 C	20 V	11.9 mm	No Marking
TE Connectivity Raychem Cable Protection TRD11D10WL	Black	On-On	Panel Mount Threaded Body with Nut	20 V	Solder Lug	100000 Cycles	0.4 VA		SPDT		80000 Cycles	Concave (Curved)	-20 C	80 C	20 V	11.9 mm	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 20 V Panel Mount, Threaded Body with Nut
