Technical Specifications
Parameters and characteristics for this part
| Specification | LTM4625IY |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 91 % |
| Features | OCP, UVLO, OTP, OVP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

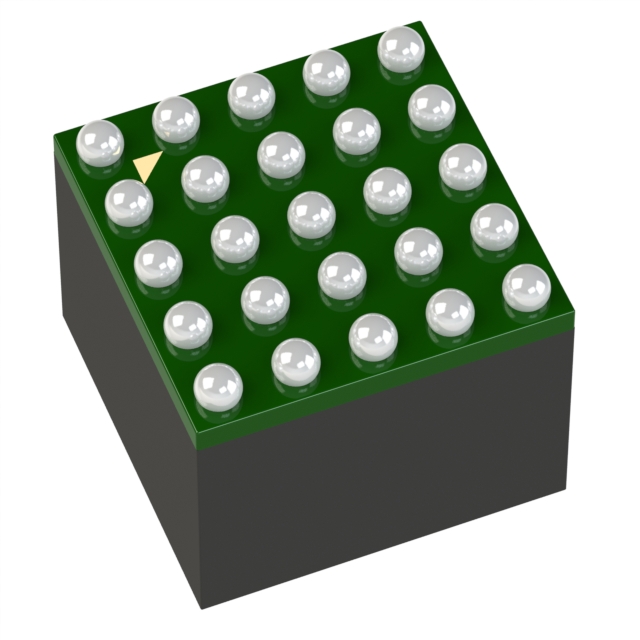

| Package / Case | 25-PowerBBGA Module |
| Size / Dimension [x] | 6.3 mm |
| Size / Dimension [x] | 0.25 in |
| Size / Dimension [y] | 6.3 mm |
| Size / Dimension [y] | 0.25 in |
| Size / Dimension [z] | 5 mm |
| Size / Dimension [z] | 0.2 in |
| Supplier Device Package | 25-BGA (6.25x6.25) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 20 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.00 | |
| 10 | $ 16.59 | |||
| 25 | $ 14.90 | |||
| 80 | $ 13.39 | |||
Description
General part information
LTM4625 Series
The LTM4625 is a complete 5A step-down switching mode μModule (Power Module) regulator in a tiny 6.25mm × 6.25mm × 5.01mm BGA package. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 4V to 20V or 2.375V to 20V with an external bias supply, the LTM4625 supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers up to 5A continuous output current. Only bulk input and output capacitors are needed.The LTM4625 supports selectable discontinuous mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage, overcurrent and overtemperature protection.The LTM4625 is available with SnPb or RoHS compliant terminal finish.APPLICATIONSTelecom, Datacom, Networking and Industrial EquipmentMedical Diagnostic EquipmentData Storage Rack Units and CardsTest and Debug Systems
