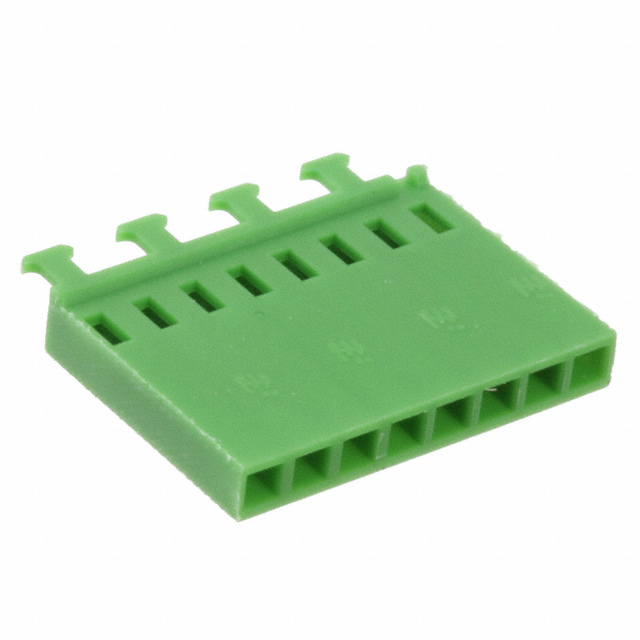

925369-8
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
925369-8
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 8POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 925369-8 | 925369 Series |
|---|---|---|
| Color | Green | Green |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 8 | 2 - 9 |
| Number of Positions | - | 16 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
925369 Series
CONN RCPT HSG 8POS 2.54MM
| Part | Connector Type | Insulation Material | Mounting Type | Pitch [x] | Pitch [x] | Number of Rows | Contact Type | Note | Contact Termination | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 925369-8 | Receptacle | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Female Socket | Contacts Not Included | Crimp | 8 | -65 ░C | 105 ░C | Green | |
TE Connectivity AMP Connectors 1-925369-6 | Receptacle | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Female Socket | Contacts Not Included | Crimp | -65 ░C | 105 ░C | Green | 16 | |
TE Connectivity AMP Connectors 925369-7 | Receptacle | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Female Socket | Contacts Not Included | Crimp | 7 | -65 ░C | 105 ░C | Green | |
TE Connectivity AMP Connectors 925369-6 | Receptacle | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Female Socket | Contacts Not Included | Crimp | 6 | -65 ░C | 105 ░C | Green | |
TE Connectivity AMP Connectors 925369-2 | Receptacle | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Female Socket | Contacts Not Included | Crimp | 2 | -65 ░C | 105 ░C | Green | |
TE Connectivity AMP Connectors 925369-9 | Receptacle | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Female Socket | Contacts Not Included | Crimp | 9 | -65 ░C | 105 ░C | Green | |
TE Connectivity AMP Connectors 925369-5 | Receptacle | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 1 | Female Socket | Contacts Not Included | Crimp | -65 ░C | 105 ░C | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.94 | |
| 10 | $ 1.77 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.70 | |||
| 100 | $ 1.58 | |||
| 250 | $ 1.56 | |||
| 500 | $ 1.42 | |||
| 1000 | $ 1.27 | |||
| 3000 | $ 1.17 | |||
Description
General part information
925369 Series
8 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)
