925369-2

Active

TE Connectivity AMP Connectors

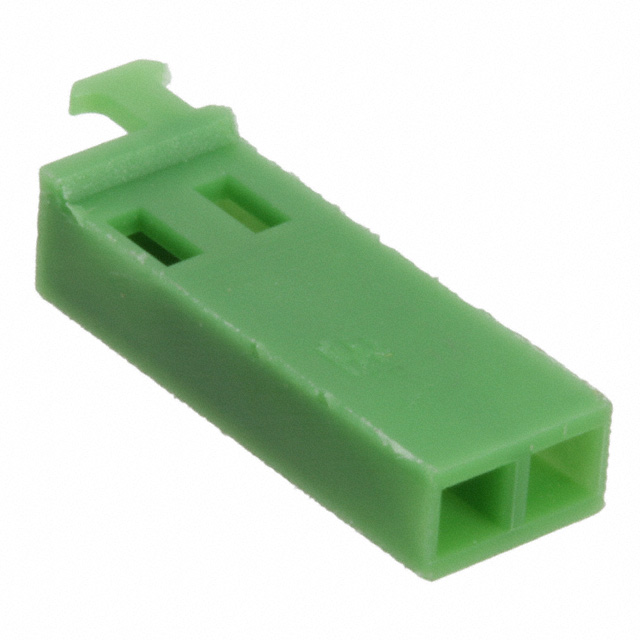

CONN RCPT HSG 2POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 8POS 2.54MM

Part	Connector Type	Insulation Material	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Note	Contact Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions
TE Connectivity AMP Connectors 925369-8	Receptacle	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Female Socket	Contacts Not Included	Crimp	8	-65 ░C	105 ░C	Green
TE Connectivity AMP Connectors 1-925369-6	Receptacle	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Female Socket	Contacts Not Included	Crimp		-65 ░C	105 ░C	Green	16
TE Connectivity AMP Connectors 925369-7	Receptacle	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Female Socket	Contacts Not Included	Crimp	7	-65 ░C	105 ░C	Green
TE Connectivity AMP Connectors 925369-6	Receptacle	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Female Socket	Contacts Not Included	Crimp	6	-65 ░C	105 ░C	Green
TE Connectivity AMP Connectors 925369-2	Receptacle	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Female Socket	Contacts Not Included	Crimp	2	-65 ░C	105 ░C	Green
TE Connectivity AMP Connectors 925369-9	Receptacle	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Female Socket	Contacts Not Included	Crimp	9	-65 ░C	105 ░C	Green
TE Connectivity AMP Connectors 925369-5	Receptacle	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Female Socket	Contacts Not Included	Crimp		-65 ░C	105 ░C	Green
