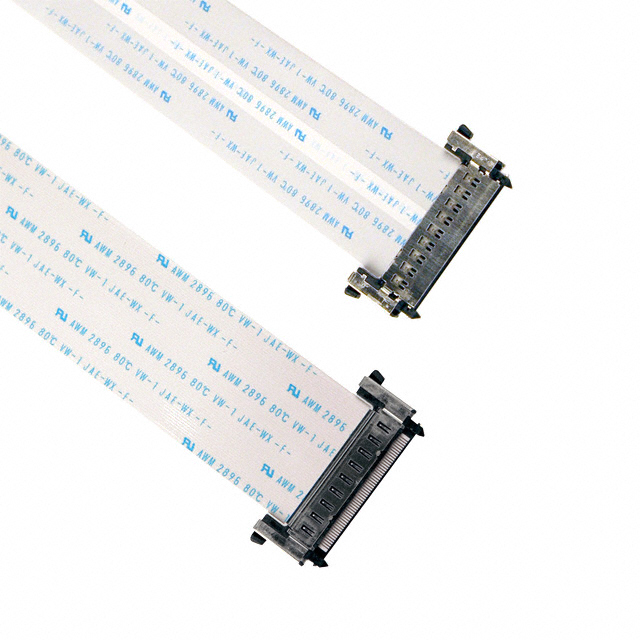

JF04R0R051035AA

Obsolete

JAE Electronics

CABLE ASSY HI SPEED 51POS 350MM

Search across all available documentation for this part.

Obsolete

JAE Electronics

CABLE ASSY HI SPEED 51POS 350MM

Technical Specifications

Parameters and characteristics for this part

Specification	JF04R0R051035AA

Contact Termination	Receptacle with Latch to Receptacle with Latch
Length	13.78 "
Length	350 mm
Number of Positions	51
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Length	Length	Pitch [x]	Pitch [x]	Number of Positions	Contact Termination	Length [x]	Length [x]
JAE Electronics JF04R0R041040AA	15.75 "	400 mm	0.5 mm	0.02 in	41	Receptacle with Latch to Receptacle with Latch
JAE Electronics JF04R0R051020AA			0.5 mm	0.02 in	51	Receptacle with Latch to Receptacle with Latch	7.87 "	200 mm
JAE Electronics JF04R0R041025AA	9.84 "	0.25 m	0.5 mm	0.02 in	41	Receptacle with Latch to Receptacle with Latch
JAE Electronics JF04R0R041020AA			0.5 mm	0.02 in	41	Receptacle with Latch to Receptacle with Latch	7.87 "	200 mm
JAE Electronics JF04R0R051035AA	13.78 "	350 mm	0.5 mm	0.02 in	51	Receptacle with Latch to Receptacle with Latch
JAE Electronics JF04R0R031020AA			0.5 mm	0.02 in	31	Receptacle with Latch to Receptacle with Latch	7.87 "	200 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

51 Position Flat Flex Cable Assembly Receptacle with Latch to Receptacle with Latch 13.78" (350.00mm)
