29K153-S00Z5

Active

Rosenberger

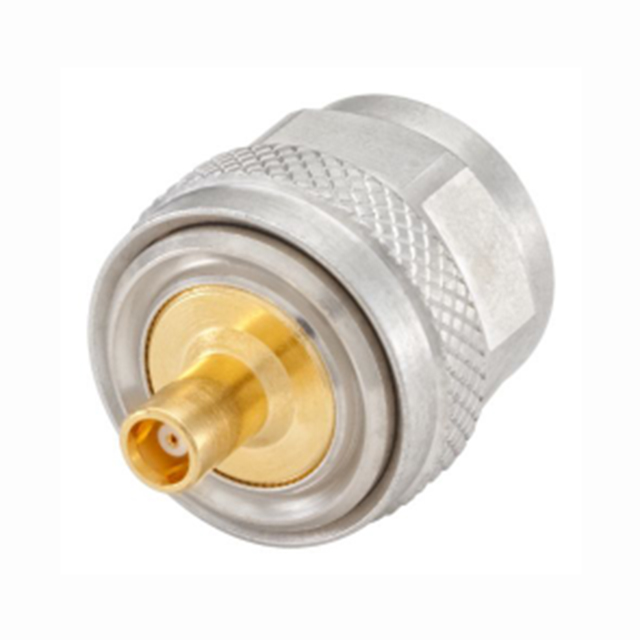

ADAPT N PLUG - MCX JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT N PLUG - MCX JACK

Technical Specifications

Parameters and characteristics for this part

Specification	29K153-S00Z5

Adapter Series	N to MCX
Adapter Type	Plug to Jack
Body Finish	Nickel, Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Dielectric Material	Style	Body Finish	Fastening Type	Center Contact Material	Adapter Series	Convert To (Adapter End)	Impedance	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Center Contact Plating	Frequency - Max [Max]	Mounting Type	Conversion Type	Adapter Type
Rosenberger 29K153-S00Z5	Polytetrafluoroethylene (PTFE)	Straight	Gold Nickel	Snap-On Threaded	Beryllium Copper	N to MCX	Male Pin N Plug	50 Ohms	500	155 °C	-55 °C	Brass	Gold	6000 MHz	Free Hanging (In-Line)	Between Series	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector MCX Jack, Female Socket To N Plug, Male Pin 50 Ohms
