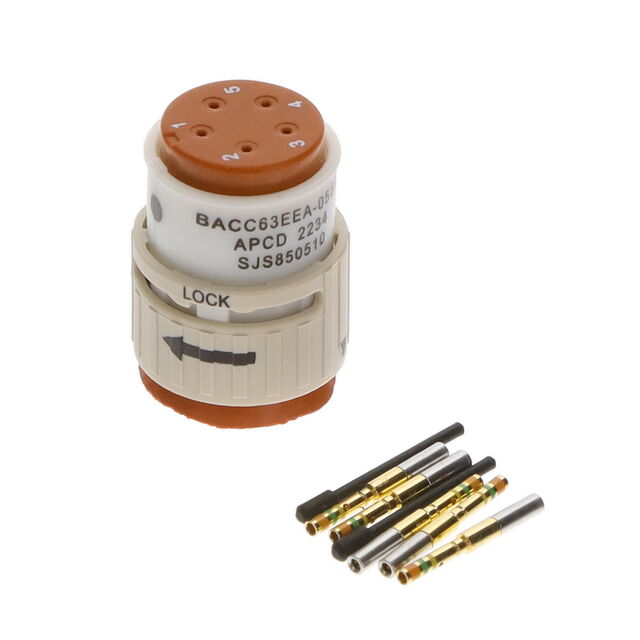

SJS850511

Active

AMPHENOL PCD

CONN PLUG FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG FMALE 5POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SJS850511	SJS85 Series

Connector Type	Female Sockets, Plug	Female Sockets, Plug, Receptacle, Male Pins, Receptacle Housing, Plug Housing
Contact Finish - Mating	Gold	Gold
Contact Shape	-	Circular
Contact Size	-	22
Contact Type	-	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Dust Cap	Dust Cap, Coupling Nut
Housing Color	-	White
Ingress Protection	Environment Sealed	Environment Sealed, IP67 - Dust Tight, Waterproof
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	-	9
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8	8 - 10
Shielding	-	Unshielded
Termination	Crimp	Crimp
Type	-	For Male Pins, For Female Sockets

CONN PLUG FMALE 5POS GOLD CRIMP

Part	Shell Size - Insert	Mounting Type	Termination	Connector Type	Ingress Protection	Features	Primary Material	Fastening Type	Contact Finish - Mating	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Note	Contact Size	Type	Material Flammability Rating	Shielding	Housing Color	Contact Shape	Contact Type
AMPHENOL PCD SJS850511	8	Free Hanging (In-Line)	Crimp	Female Sockets, Plug	Environment Sealed	Dust Cap	Plastic	Bayonet Lock	Gold	Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C
AMPHENOL PCD SJS850501	8	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Environment Sealed	Dust Cap	Plastic	Bayonet Lock	Gold	Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C
AMPHENOL PCD SJS850911	10	Free Hanging (In-Line)	Crimp	Female Sockets, Plug	Environment Sealed	Dust Cap	Plastic	Bayonet Lock	Gold	Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C	9
AMPHENOL PCD SJS850500	8	Free Hanging (In-Line)		Receptacle Housing	IP67 - Dust Tight, Waterproof	Dust Cap		Bayonet Lock		Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C		Contacts Not Included	22	For Male Pins	UL94 V-0	Unshielded	White	Circular	Crimp
AMPHENOL PCD SJS850510	8	Free Hanging (In-Line)		Plug Housing	IP67 - Dust Tight, Waterproof	Coupling Nut, Dust Cap		Bayonet Lock		Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C		Contacts Not Included	22	For Female Sockets	UL94 V-0	Unshielded	White	Circular	Crimp
