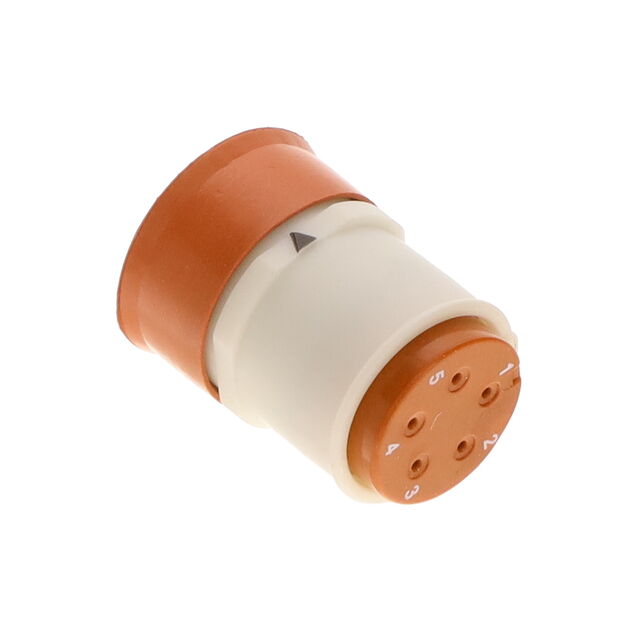

SJS850500

Active

AMPHENOL PCD

CONN RCPT HSNG MALE 5POS INLINE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN RCPT HSNG MALE 5POS INLINE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Dust Cap

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SJS850500	SJS85 Series

Connector Type	Receptacle Housing	Female Sockets, Plug, Receptacle, Male Pins, Receptacle Housing, Plug Housing
Contact Finish - Mating	-	Gold
Contact Shape	Circular	Circular
Contact Size	22	22
Contact Type	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Dust Cap	Dust Cap, Coupling Nut
Housing Color	White	White
Ingress Protection	IP67 - Dust Tight, Waterproof	Environment Sealed, IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	9
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Primary Material	-	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8	8 - 10
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Type	For Male Pins	For Male Pins, For Female Sockets

CONN PLUG FMALE 5POS GOLD CRIMP

Part	Shell Size - Insert	Mounting Type	Termination	Connector Type	Ingress Protection	Features	Primary Material	Fastening Type	Contact Finish - Mating	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Note	Contact Size	Type	Material Flammability Rating	Shielding	Housing Color	Contact Shape	Contact Type
AMPHENOL PCD SJS850511	8	Free Hanging (In-Line)	Crimp	Female Sockets, Plug	Environment Sealed	Dust Cap	Plastic	Bayonet Lock	Gold	Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C
AMPHENOL PCD SJS850501	8	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Environment Sealed	Dust Cap	Plastic	Bayonet Lock	Gold	Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C
AMPHENOL PCD SJS850911	10	Free Hanging (In-Line)	Crimp	Female Sockets, Plug	Environment Sealed	Dust Cap	Plastic	Bayonet Lock	Gold	Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C	9
AMPHENOL PCD SJS850500	8	Free Hanging (In-Line)		Receptacle Housing	IP67 - Dust Tight, Waterproof	Dust Cap		Bayonet Lock		Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C		Contacts Not Included	22	For Male Pins	UL94 V-0	Unshielded	White	Circular	Crimp
AMPHENOL PCD SJS850510	8	Free Hanging (In-Line)		Plug Housing	IP67 - Dust Tight, Waterproof	Coupling Nut, Dust Cap		Bayonet Lock		Polyamide (PA66), Nylon 6/6	155 °C	-65 ░C		Contacts Not Included	22	For Female Sockets	UL94 V-0	Unshielded	White	Circular	Crimp
