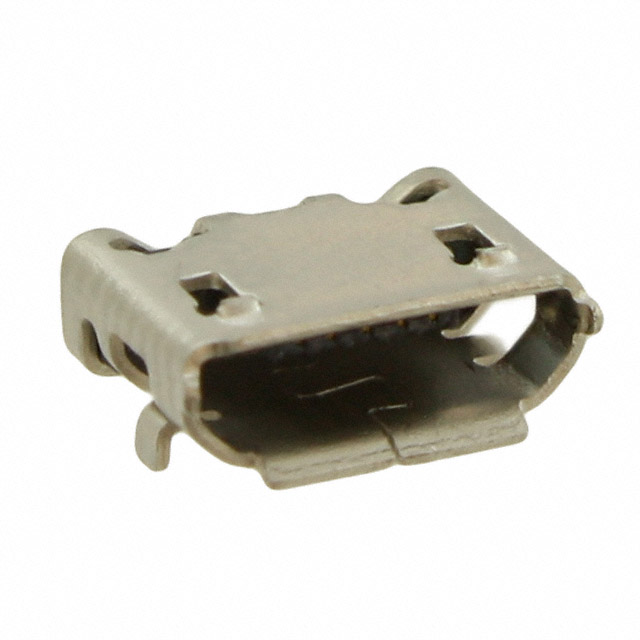

10118193-0001LF - 10118193-0001LF

10118193-0001LF

Active
Amphenol ICC (FCI)

CONN RCPT USB2.0 MICRO B SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetmicro usb 2 0 productpresentation Other Related Document+1
10118193-0001LF - 10118193-0001LF

10118193-0001LF

Active
Amphenol ICC (FCI)

CONN RCPT USB2.0 MICRO B SMD R/A

Deep-Dive with AI

DocumentsDatasheetmicro usb 2 0 productpresentation Other Related Document+1

Technical Specifications

Parameters and characteristics for this part

Specification10118193-0001LF
Connector TypeUSB - micro B
Contact FinishGold
Current Rating (Amps)1.8 A
FeaturesSolder Retention
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mating Cycles10000
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Surface Mount, Right Angle
Number of Contacts5
Number of Ports1
Operating Temperature [Max]80 C
Operating Temperature [Min]-30 ░C
Shell/Shielding MaterialStainless, Steel
ShieldingShielded
SpecificationsUSB 2.0
TerminationSolder
Voltage - Rated100 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.57
10$ 0.43
25$ 0.39
50$ 0.36
100$ 0.33
250$ 0.30
500$ 0.28
Digi-Reel® 1$ 0.57
10$ 0.43
25$ 0.39
50$ 0.36
100$ 0.33
250$ 0.30
500$ 0.28
Tape & Reel (TR) 1200$ 0.25
2400$ 0.23
3600$ 0.22
6000$ 0.21
8400$ 0.20
12000$ 0.20
30000$ 0.18

Description

General part information

10118193 Series

USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
