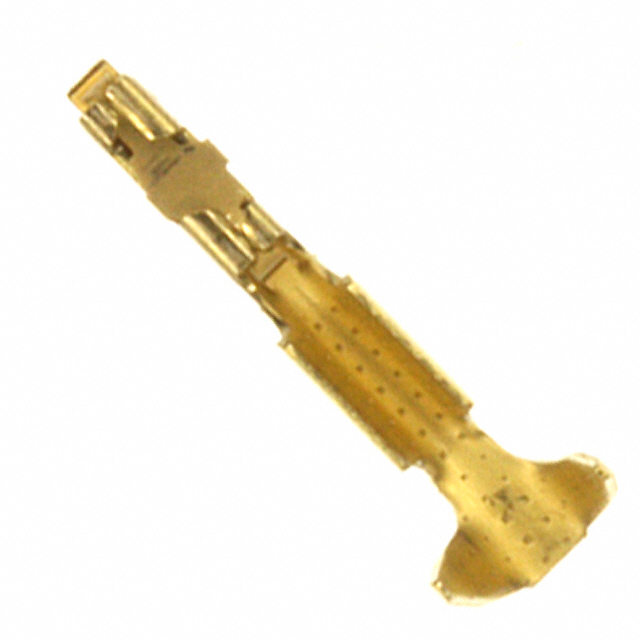

48257-000LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
48257-000LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 48257-000LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.87 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.55 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.39 | |||
| 2500 | $ 0.36 | |||
Description
General part information
48257 Series
Socket Contact Gold 22-26 AWG Crimp
