REF22KGPDINVEASY3BTOBO2
ActiveTHE REF-22K-GPD-INV-EASY3B IS A GENERAL PURPOSE DRIVE DEVELOPED FOR APPLICATIONS LIKE PUMPS, FANS, COMPRESSORS, CONVEYOR BELTS.
Deep-Dive with AI
Search across all available documentation for this part.
REF22KGPDINVEASY3BTOBO2
ActiveTHE REF-22K-GPD-INV-EASY3B IS A GENERAL PURPOSE DRIVE DEVELOPED FOR APPLICATIONS LIKE PUMPS, FANS, COMPRESSORS, CONVEYOR BELTS.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | REF22KGPDINVEASY3BTOBO2 |
|---|---|
| Embedded | Yes, MCU |
| Function | Motor Controller/Driver |
| Primary Attributes | Motors (AC) |
| Supplied Contents | Cable(s), Board(s) |
| Type | Power Management |
| Utilized IC / Part | 1ED3131MC12H, XMC4800 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
REF22KGPD Series

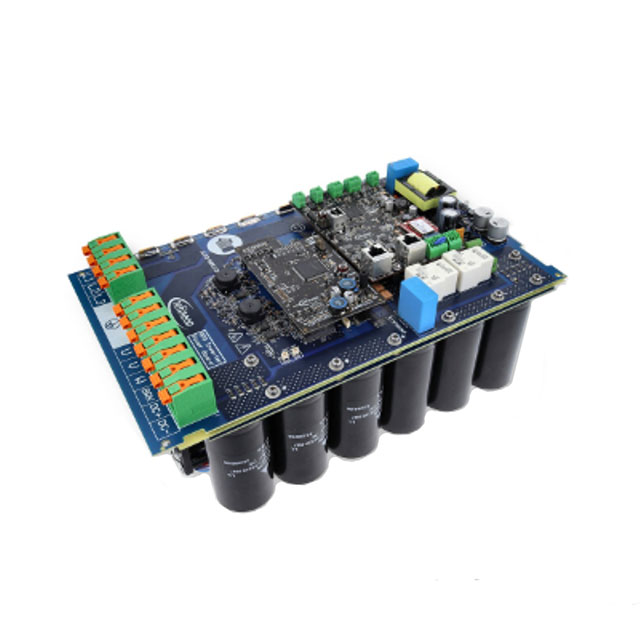

This reference design is an industrial motor drive suitable for the drive of pumps,fans,compressors,conveyor belts and others. It includes the Easy™3B power moduleFP100R12W3T7_B11,TLI4971current sensors,1ED3240gate driver,IMBF170R1K0M1SiC-MOSFET as well asXMC4800andXMC4300microcontrollers. With all the ingredients of a general-purpose drive it allows a quick evaluation of our technologies as well as the interaction between the products
