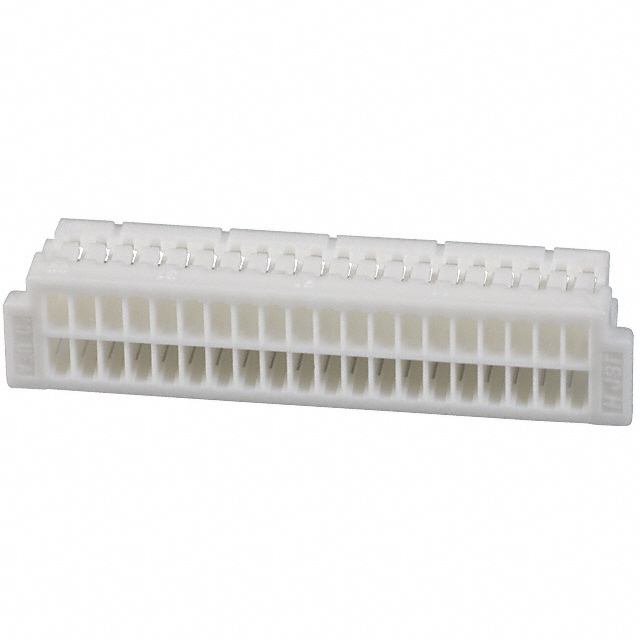

SHDR-40V-S-B

Active

JST Sales America Inc.

CONN RCPT HSG 40POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 40POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHDR-40V-S-B

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Pick and Place
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Row Spacing	0.039 in
Row Spacing	1 mm

Part	Color	Pitch [x]	Pitch [x]	Contact Termination	Number of Positions	Insulation Material	Row Spacing	Row Spacing	Features	Contact Type	Connector Type	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Note
JST Sales America Inc. SHDR-40V-S-B	Natural	0.039 in	1 mm	Crimp	40	Polybutylene Terephthalate (PBT)	0.039 in	1 mm	Pick and Place	Female Socket	Receptacle	2	Free Hanging (In-Line)	-25 °C	85 °C	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
