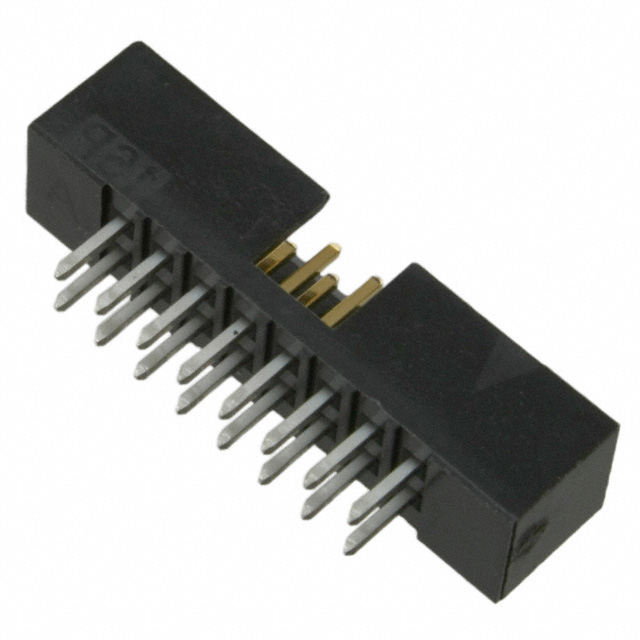

957216-6002-AR

Active

3M (TC)

CONN SHROUDED HEADER HDR 16 POS 2MM SOLDER ST THRU-HOLE BOX

Search across all available documentation for this part.

Active

3M (TC)

CONN SHROUDED HEADER HDR 16 POS 2MM SOLDER ST THRU-HOLE BOX

Technical Specifications

Parameters and characteristics for this part

Specification	957216-6002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Connector Type	Insulation Material	Mounting Type	Termination	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Mating	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Post	Features	Contact Shape	Number of Positions	Shrouding	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]
3M (TC) 957216-2000-AR-PR	-40 °C	105 ░C	Male Pin	2	0.079 in	2 mm	Copper Alloy	Header	Thermoplastic	Surface Mount	Solder	Black	0.079 in	2 mm	All	Flash	Push-Pull	5.6 mm	0.22 in	Tin	Keying Slot Pick and Place	Square	16	Shrouded - 4 Wall	UL94 V-0	1 çm	39.4 çin	Gold
3M (TC) 957216-6002-AR	-40 °C	105 ░C	Male Pin	2	0.079 in	2 mm	Copper Alloy	Header	Thermoplastic	Through Hole	Solder	Black	0.079 in	2 mm	All	Flash	Push-Pull	5.6 mm	0.22 in	Tin	Keying Slot	Square	16	Shrouded - 4 Wall	UL94 V-0	1 çm	39.4 çin	Gold	0.118 in	3 mm
3M (TC) 957216-5002-AR	-40 °C	105 ░C	Male Pin	2	0.079 in	2 mm	Copper Alloy	Header	Thermoplastic	Through Hole Right Angle	Solder	Black	0.079 in	2 mm	All	Flash	Push-Pull			Tin	Keying Slot	Square	16	Shrouded - 4 Wall	UL94 V-0	1 çm	39.4 çin	Gold	0.118 in	3 mm	5.51 mm	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	8000	$ 1.69

General part information

Connector Header Through Hole 16 position 0.079" (2.00mm)
