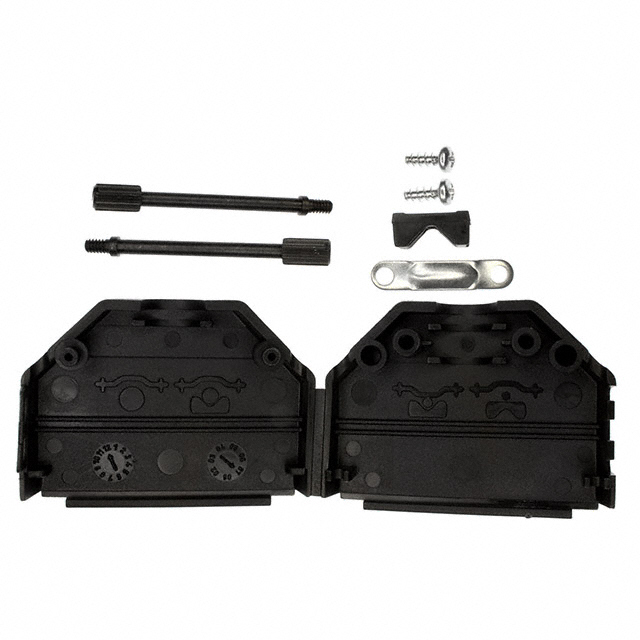

972-025-01SR011
ActiveD SUB BACKSHELL, ARMOR 972 SERIES, DB, 180°, NYLON 6.6 (POLYAMIDE 6.6) BODY
Deep-Dive with AI
Search across all available documentation for this part.
972-025-01SR011
ActiveD SUB BACKSHELL, ARMOR 972 SERIES, DB, 180°, NYLON 6.6 (POLYAMIDE 6.6) BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 972-025-01SR011 |
|---|---|
| Accessory Type | Hinged Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Black |
| Compatible D-Sub Size | HD44pos, 25pos |
| Compatible Shell Size | B |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Strain Relief |
| Material | Polyamide (PA66), Nylon 6/6 |
| Primary Material | Plastic |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
972-025 Series
The 972 series clam shell style Backshell with one piece clam construction aids assembly, keeping manufacturing. It is available in 4 industry sizes/positions (9, 15, 25 and 37). It has fast assembly cable clamp with high quality self-tapping screws. It has wide range of colours available for coding/brand identification. It is available in slim-line version for critical space requirements.
