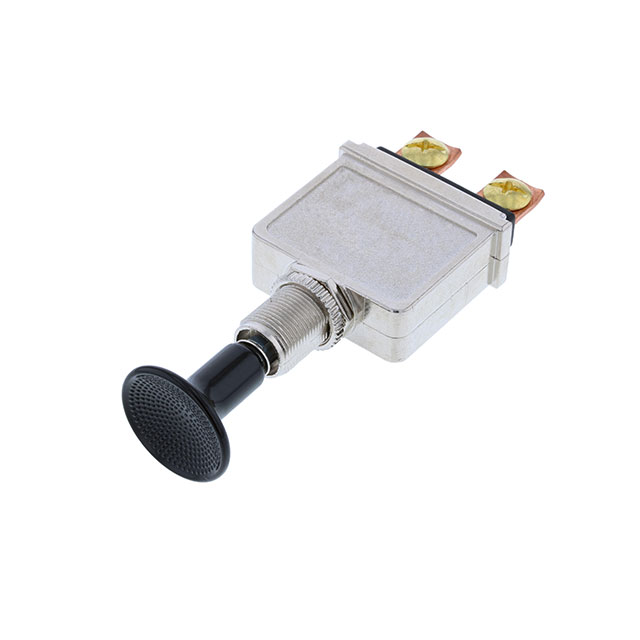

PP-1A-DC-7-B

Active

Switch Components

HEAVY DUTY PUSH-PULL OFF-ON

Search across all available documentation for this part.

Active

Switch Components

HEAVY DUTY PUSH-PULL OFF-ON

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Standard Panel Mount, Rear

Technical documentation and resources

Specification	PP-1A-DC-7-B	PP-1A-D Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black, Silver
Current Rating (Amps)	75 A	75 A
Electrical Life	6000 Cycles	6000 Cycles
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Standard
Voltage Rating - DC	12 V	12 V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Type	Actuator Type	Current Rating (Amps)	Actuator Marking	Color - Actuator/Cap	Mounting Type	Termination Style	Switch Function	Circuit
Switch Components PP-1A-DC-7-B	6000 Cycles	10000 Steps	12 V	-25 °C	85 °C	12.2 mm	Standard	Button, Round	75 A	No Marking	Black	Panel Mount, Rear	Screw Terminal	On-Off	SPST
Switch Components PP-1A-DC-7-M	6000 Cycles	10000 Steps	12 V	-25 °C	85 °C	12.2 mm	Standard	Button, Round	75 A	No Marking	Silver	Panel Mount, Rear	Screw Terminal	On-Off	SPST
