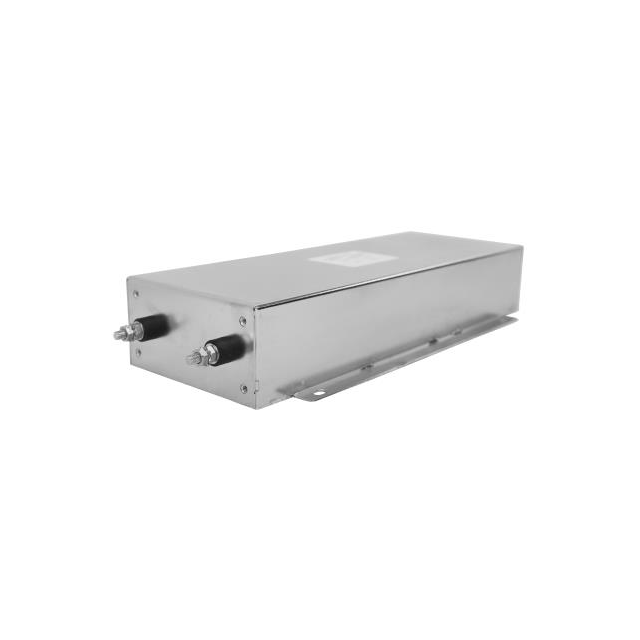

RPT5500-10-S

Active

Astrodyne TDI

LINE FILTER 300VAC 10A CHASSIS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 300VAC 10A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated AC	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Filter Type	Configuration	Mounting Type
Astrodyne TDI RPT5500-15-S	300 V	Threaded Post (M5)	100 °C	-40 °C	60 Hz 400 Hz	50 Hz	15 A	Single Phase	Three Stage	Chassis Mount
Astrodyne TDI RPT5500-30-S	300 V	Threaded Post (M5)	100 °C	-40 °C	60 Hz 400 Hz	50 Hz	30 A	Single Phase	Three Stage	Chassis Mount
Astrodyne TDI RPT5500-10-S	300 V	Threaded Post (M5)	100 °C	-40 °C	60 Hz 400 Hz	50 Hz	10 A	Single Phase	Three Stage	Chassis Mount
Astrodyne TDI RPT5500-35-S	300 V	Threaded Post (M5)	100 °C	-40 °C	60 Hz 400 Hz	50 Hz		Single Phase	Three Stage	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1456.16

General part information

Single Phase EMC/EMI Line Filter 10 A 300V 50/60Hz, 50/400Hz Three Stage Threaded Post (M5)
