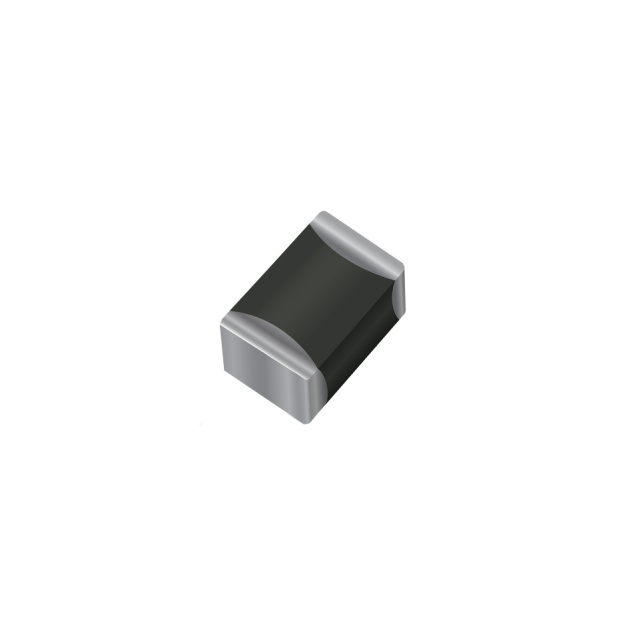

CAN0001RP
ActiveKyocera AVX
VARISTOR 0604
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAN0001RP
ActiveKyocera AVX
VARISTOR 0604
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAN0001RP |
|---|---|
| Capacitance @ Frequency | 22 pF |
| Current - Surge | 4 A |
| Energy | 0.015 J |
| Grade | Automotive |
| Maximum AC Volts [Max] | 14 V |
| Maximum DC Volts [Max] | 18 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Qualification | AEC-Q200 |
| Varistor Voltage (Typ) | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.36 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 4000 | $ 0.14 | ||
Description
General part information
CAN00 Series
120 V 4 A Varistor 1 Circuit Surface Mount, MLCV 0603 (1608 Metric)
