ActiveEDAC Inc.

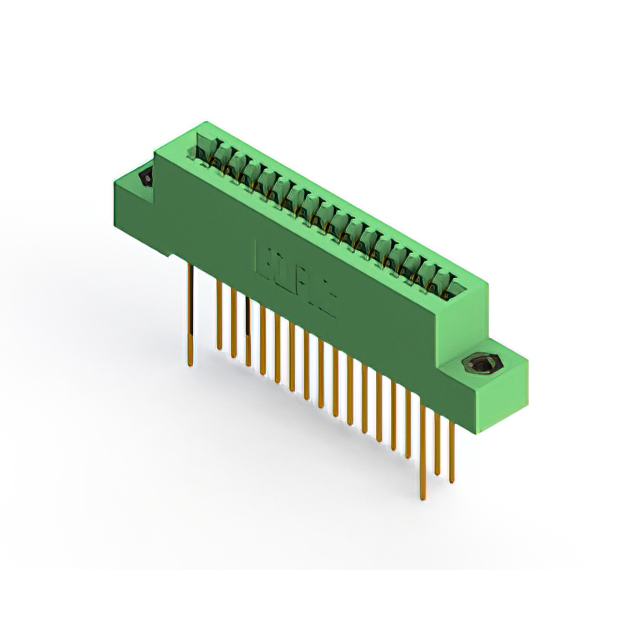

2.54MM STRAIGHT 34P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-034-542-208
ActiveEDAC Inc.
2.54MM STRAIGHT 34P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-034-542-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
342-034 Series
...
| Part | Gender | Card Type | Termination Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Type | Number of Positions | Read Out | Color | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Contact Material | Material - Insulation | Pitch [x] | Pitch [x] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Non Specified - Dual Edge | 2 | Through Hole | -40 °C | 105 ░C | Wire Wrap | Cantilever | 34 | Dual | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Female | Non Specified - Single Edge | 1 | Through Hole | -40 °C | 105 ░C | Wire Wrap | Cantilever | 34 | Single | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 34 | |||
EDAC Inc. | Female | Non Specified - Single Edge | 1 | Through Hole | -40 °C | 105 ░C | Solder | Cantilever | 34 | Single | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 34 | |||
EDAC Inc. | Female | Non Specified - Dual Edge | 2 | Through Hole | -40 °C | 105 ░C | Solder | Cantilever | 34 | Dual | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | ||
EDAC Inc. | Female | Non Specified - Dual Edge | 2 | Through Hole | -40 °C | 105 ░C | Solder | Cantilever | 34 | Dual | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Female | Non Specified - Dual Edge | 2 | Through Hole Right Angle | -40 °C | 105 ░C | Solder Wire Wrap | Cantilever | 34 | Dual | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Female | Non Specified - Dual Edge | 2 | Board Edge Straddle Mount | -40 °C | 105 ░C | Solder Eyelet(s) | Cantilever | 34 | Dual | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Card Extender | |
EDAC Inc. | Female | Non Specified - Dual Edge | 2 | Through Hole | -40 °C | 105 ░C | Wire Wrap | Cantilever | 34 | Dual | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Female | Non Specified - Single Edge | 1 | Through Hole | -40 °C | 105 ░C | Solder | Cantilever | 34 | Single | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 34 | ||||
EDAC Inc. | Female | Non Specified - Single Edge | 1 | Through Hole Right Angle | -40 °C | 105 ░C | Solder Wire Wrap | Cantilever | 34 | Single | Green | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | Polyester Thermoplastic | 2.54 mm | 0.1 in | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | 34 | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-034 Series
34 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
