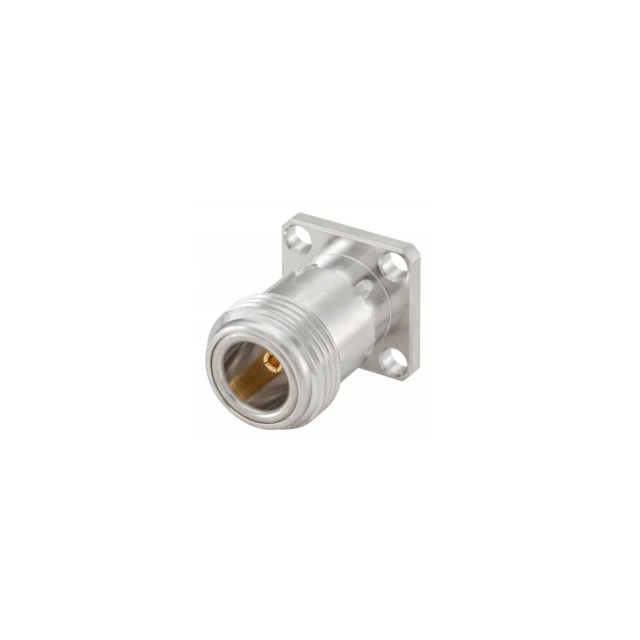

53K401-800N5

Obsolete

Rosenberger

N TYPE PANEL JACK

Search across all available documentation for this part.

Obsolete

Rosenberger

N TYPE PANEL JACK

Technical Specifications

Parameters and characteristics for this part

Specification	53K401-800N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Material	Dielectric Material	Center Contact Plating	Body Finish	Mounting Feature	Contact Termination	Frequency - Max [Max]	Body Material	Connector Style	Mating Cycles	Impedance	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Voltage Rating	Connector Type	Shield Termination
Rosenberger 53K401-800N5	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	White Bronze	Flange	Solder Cup	11 GHz	Brass	N Type	500	50 Ohms	1	155 °C	-55 °C	Silver	500 V	Female Socket Jack	Solder
Rosenberger 53K401-200N5	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	White Bronze	Flange	Solder Cup	11 GHz	Brass	N Type	500	50 Ohms	1			Silver	500 V	Female Socket Jack	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
