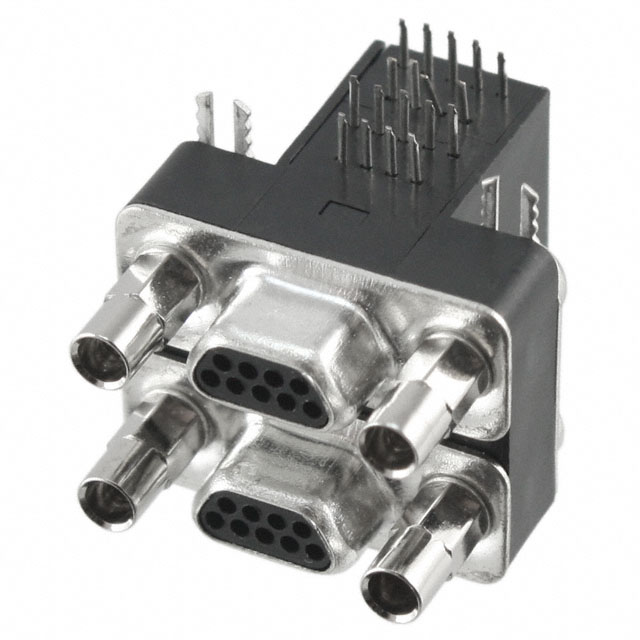

Specification	382-009-112L565

Connector Layout Pitch	0.05
Connector Layout Row to Row	0.043
Connector Style	D-Type, Micro-D - Stacked
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	1 A
Dielectric Material	Thermoplastic
Features	Shielded, Board Lock
Finish	Tin Plated
Flange Feature	Mating Side, Female Screwlock (2-56)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	9
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Termination	Solder

382-009 Series

Part	Number of Rows	Connector Layout Row to Row	Connector Layout Pitch	Material Flammability Rating	Contact Finish Thickness	Connector Style	Flange Feature	Connector Type	Finish	Shell Material	Number of Positions	Number of Positions	Current Rating	Features	Contact Finish	Termination	Contact Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material
NorComp Inc. 382-009-112L565	2	0.043	0.05	UL94 V-0	15 µin	D-Type Micro-D - Stacked	Female Screwlock (2-56) Mating Side	Male Pins Plug	Tin Plated	Steel	9	9	1 A	Board Lock Shielded	Gold	Solder	Signal	Board Edge Right Angle Through Hole	-55 °C	85 °C	Thermoplastic	Copper Alloy
