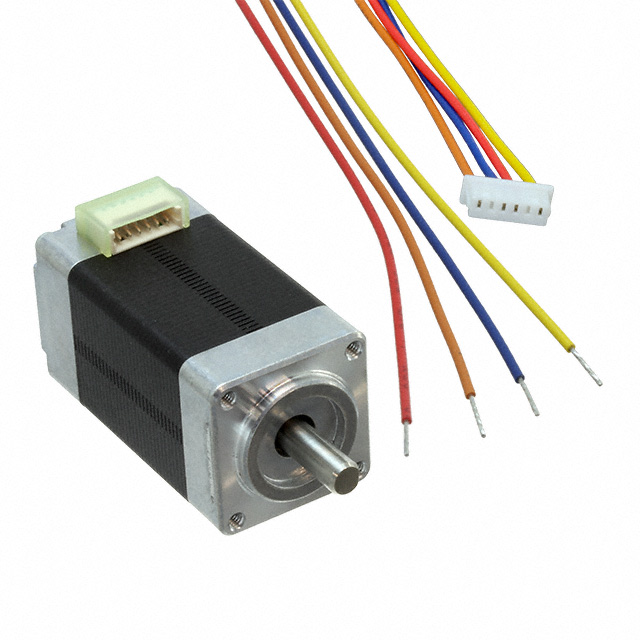

08PM-K139BSTDCN
ActiveNMB TECHNOLOGIES
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Search across all available documentation for this part.
08PM-K139BSTDCN
ActiveNMB TECHNOLOGIES
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 08PM-K139BSTDCN |
|---|---|
| Coil Resistance | 6.5 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 600 mA |
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Features | Flatted Shaft |
| Length - Shaft and Bearing [x] | 0.394 in |
| Length - Shaft and Bearing [x] | 10 mm |
| Mounting Hole Spacing | 0.63 in |
| Mounting Hole Spacing | 16 mm |
| NEMA Frame Size | 8 |
| Rotor Inertia | 2.9 gcm˛ |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [y] | 0.787 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Torque - Holding (oz-in / mNm) | 36 mNm |
| Torque - Holding (oz-in / mNm) | 5.1 oz-in |
| Type | Hybrid |
| Voltage - Rated | 24 VDC |
| Weight | 70.31 g |
| Weight | 0.155 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3 | $ 73.40 | |
Description
General part information
08PM Series
Bipolar Stepper Motor Hybrid Frame Size 8 200.0 Step 600 mA 24VDC
