1896/10C SL005

Active

ALPHA WIRE

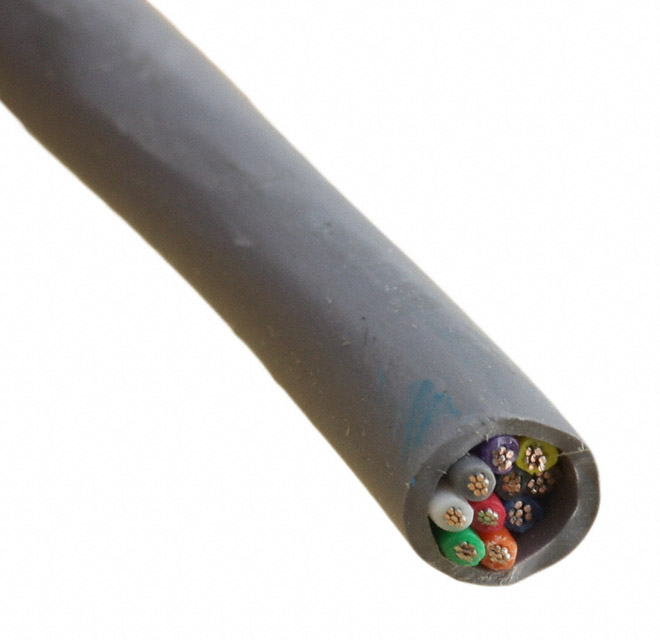

CABLE 10COND 20AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 20AWG SLATE 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1896/10C SL005	1896/10C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	8.13 mm	8.13 mm
Jacket (Insulation) Diameter [diameter]	0.32 in	0.32 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	10	10
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 10COND 20AWG SLATE 100'

Part	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Number of Conductors	Conductor Insulation	Jacket (Insulation) Material	Usage	Conductor Material	Voltage	Length	Length
ALPHA WIRE 1896/10C SL005	20 AWG	-20 C	80 C	28	7	Multi-Conductor	30.5 m	100 ft	8.13 mm	0.32 in	0.02 in	0.508 mm	Slate	10	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication, Control	Copper, Tinned	300 V
ALPHA WIRE 1896/10C SL001	20 AWG	-20 C	80 C	28	7	Multi-Conductor			8.13 mm	0.32 in	0.02 in	0.508 mm	Slate	10	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication, Control	Copper, Tinned	300 V	1000 ft	304.8 m
ALPHA WIRE 1896/10C SL002	20 AWG	-20 C	80 C	28	7	Multi-Conductor	152.4 m	500 '	8.13 mm	0.32 in	0.02 in	0.508 mm	Slate	10	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Communication, Control	Copper, Tinned	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Slate 20 AWG 100.0' (30.5m)
