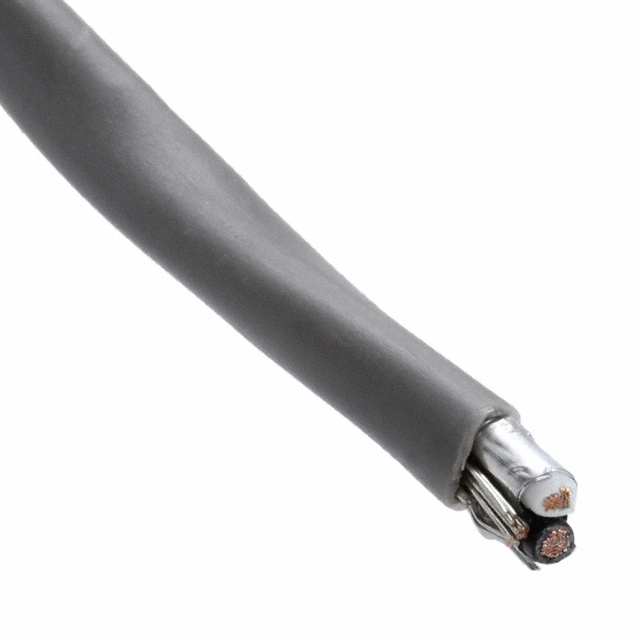

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 1 PAIR, 18 AWG, 0.823 MM², 500 FT, 152.4 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

8760 060U500

Active

Belden Inc.

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 1 PAIR, 18 AWG, 0.823 MM², 500 FT, 152.4 M

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8760 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.64 mm
Jacket (Insulation) Diameter [diameter]	0.222 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.028 in
Jacket (Insulation) Thickness	0.711 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

8760 Series

Part	Conductor Material	Conductor Insulation	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket Color	Number of Conductors	Wire Gauge	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Shield Coverage	Length	Length	Length [x]	Length [x]
Belden Inc. 8760 060250	Copper Tinned	Polyethylene (PE)	Foil	5.64 mm	0.222 in	-20 C	60 °C	Aluminum	Chrome	2	18 AWG	Drain Wire	16	30 AWG	Poly-Vinyl Chloride (PVC)	0.028 in	0.711 mm	Multi-Conductor	100 %	3000 "	76.2 m
Belden Inc. 8760 060500	Copper Tinned	Polyethylene (PE)	Foil	5.64 mm	0.222 in	-20 C	60 °C	Aluminum	Chrome	2	18 AWG	Drain Wire	16	30 AWG	Poly-Vinyl Chloride (PVC)	0.028 in	0.711 mm	Multi-Conductor	100 %			500 '	152.4 m
Belden Inc. 8760 060U500	Copper Tinned	Polyethylene (PE)	Foil	5.64 mm	0.222 in	-20 C	60 °C	Aluminum	Chrome	2	18 AWG	Drain Wire	16	30 AWG	Poly-Vinyl Chloride (PVC)	0.028 in	0.711 mm	Multi-Conductor	100 %			500 '	152.4 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1009.79
		3	$ 934.19
		5	$ 901.79
		7	$ 880.19
		10	$ 858.59
Newark	Spool of 500	1	$ 967.72
		5	$ 930.30
		10	$ 898.22

Description

General part information

8760 Series

The 8760 060U500 is a 500ft 2-conductor shielded Twisted Pair Cable with 18AWG stranded (16 x 30) tinned copper conductors, polyethylene insulation, overall Beldfoil® aluminum foil-polyester tape with shorting fold shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
