M12A-06PMMP-SF8002 - M12A-06PMMP-SF8002

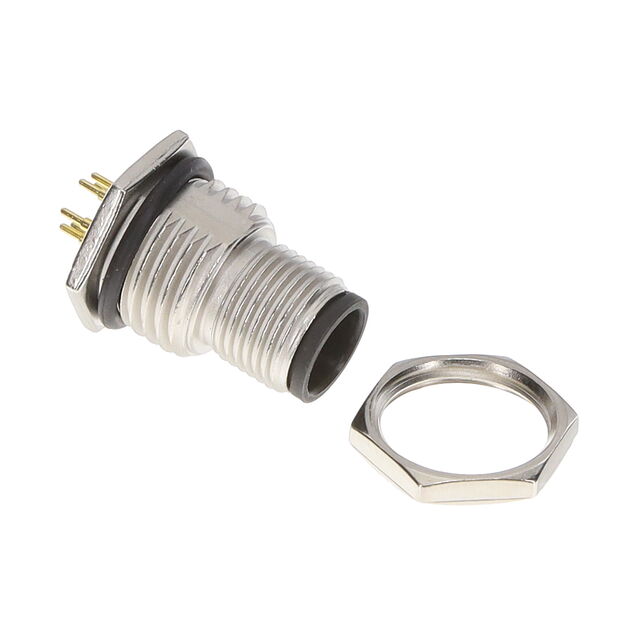

M12A-06PMMP-SF8002

Active
Amphenol LTW

M SERIES, M12, 2A, 06 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
M12A-06PMMP-SF8002 - M12A-06PMMP-SF8002

M12A-06PMMP-SF8002

Active
Amphenol LTW

M SERIES, M12, 2A, 06 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationM12A-06PMMP-SF8002
ColorSilver
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)2 A
Ingress ProtectionIP68, IP69K
Insert MaterialPolyamide (PA), Nylon, Glass Filled
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Panel Mount
Number of Positions6
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationA
Primary MaterialMetal
Shell FinishNickel
Shell MaterialZinc Alloy
Shell Size - InsertM12-6
ShieldingShielded
TerminationSolder
Voltage Rating30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 8.11
10$ 6.89
25$ 7.20
30$ 6.38
50$ 6.15
100$ 5.86
250$ 5.49
500$ 5.23
1000$ 4.98
NewarkEach 10$ 8.20
25$ 7.72
50$ 7.12
100$ 6.64
250$ 6.00
500$ 5.85
1000$ 5.26

Description

General part information

M12A-06PMMP Series

6 Position Circular Connector Receptacle, Male Pins Solder
