2-967644-1
ActiveTE Connectivity AMP Connectors

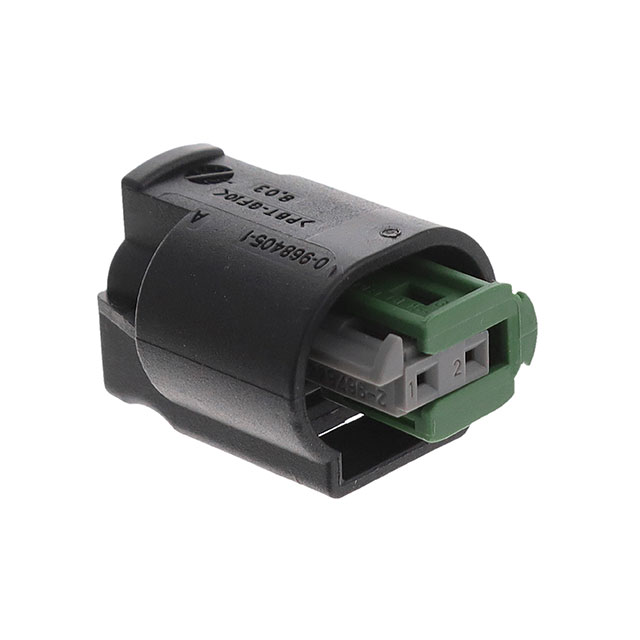

CONN RCPT HSG 2POS 4.00MM
Deep-Dive with AI
Search across all available documentation for this part.
2-967644-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 4.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-967644-1 | 967644 Series |
|---|---|---|
| Color | Gray | Gray, Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Sealed | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 4 mm | 4 mm |
| Pitch [x] | 0.157 in | 0.157 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.90 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.81 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.69 | |||
967644 Series
CONN RCPT HSG 2POS 4.00MM
| Part | Fastening Type | Contact Termination | Number of Positions | Features | Operating Temperature [Min] | Operating Temperature [Max] | Note | Mounting Type | Insulation Material | Number of Rows | Pitch [x] | Pitch [x] | Contact Type | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-967644-1 | Latch Holder | Crimp | 2 | Sealed | -40 °C | 120 °C | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | 1 | 4 mm | 0.157 in | Female Socket | Gray | Receptacle |
TE Connectivity AMP Connectors 7-967644-3 | Latch Holder | Crimp | 2 | Sealed | -40 °C | 120 °C | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | 1 | 4 mm | 0.157 in | Female Socket | Black | Receptacle |
TE Connectivity AMP Connectors 1-967644-1 | Latch Holder | Crimp | 2 | Sealed | -40 °C | 120 °C | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT), Glass Filled | 1 | 4 mm | 0.157 in | Female Socket | Black | Receptacle |
Description
General part information
967644 Series
2 Rectangular Connectors - Housings Receptacle Gray 0.157" (4.00mm)
