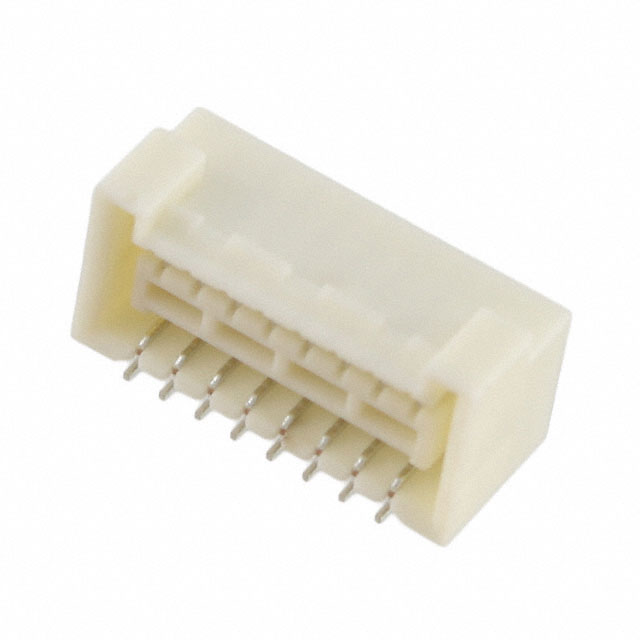

SM16B-ZPDSS-TF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 16POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 16POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM16B-ZPDSS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.309 in
Insulation Height	7.85 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Current Rating (Amps)	Fastening Type	Number of Positions Loaded	Insulation Color	Contact Shape	Contact Material	Termination	Insulation Material	Voltage Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Shrouding	Style	Contact Finish - Post	Mounting Type	Contact Type	Number of Positions	Insulation Height	Insulation Height
JST Sales America Inc. SM16B-ZPDSS-TF	2 A	Locking Ramp	All	Natural	Rectangular	Copper Alloy	Solder	Nylon Polyamide (PA)	100 V	2	-25 °C	85 °C	UL94 V-0	Header	Shrouded - 4 Wall	Board to Cable/Wire	Tin	Surface Mount Right Angle	Outer Shroud Contact	16	0.309 in	7.85 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 16 position 0.059" (1.50mm)
