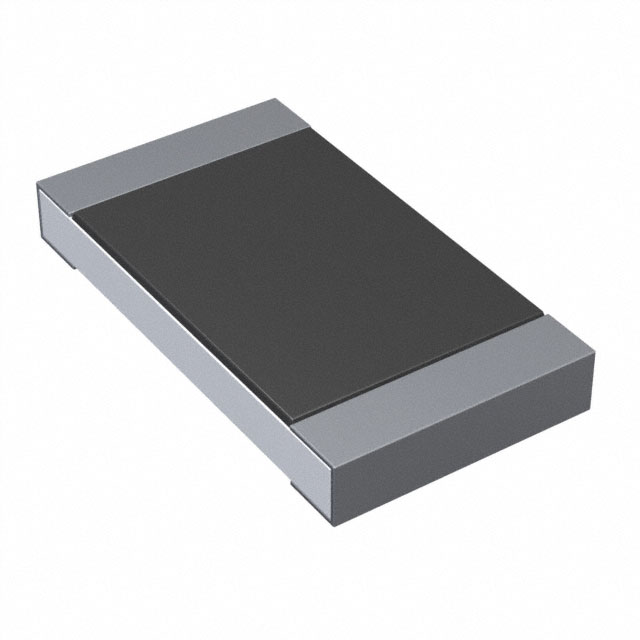

CR2010-FX-3301ELF

Active

Bourns Inc.

RES 2010 3K30 1% 500MW TC100 /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CR2010-FX-3301ELF

Active

Bourns Inc.

RES 2010 3K30 1% 500MW TC100 /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CR2010-FX-3301ELF

Composition	Thick Film
Features	Automotive AEC-Q200
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	2010 (5025 Metric)
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Ratings	AEC-Q200
Resistance	3300 Ohms
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.5 mm
Supplier Device Package	2010
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

CR2010 Series

Part	Temperature Coefficient	Package / Case	Power (Watts)	Power (Watts)	Composition	Number of Terminations	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Ratings	Features
Bourns Inc. CR2010-FX-1211ELF	100 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	1.21 kOhms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	1 %
Bourns Inc. CR2010-JW-104ELF	200 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	100 kOhms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	5 %
Bourns Inc. CR2010-JW-152ELF	200 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	1500 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	5 %
Bourns Inc. CR2010-JW-681ELF	200 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	680 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	5 %
Bourns Inc. CR2010-FX-3301ELF	100 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	3300 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	1 %	AEC-Q200	Automotive AEC-Q200
Bourns Inc. CR2010-FX-45R3ELF	100 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	45.3 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	1 %
Bourns Inc. CR2010-FX-23R7ELF	100 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	23.7 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	1 %	AEC-Q200	Automotive AEC-Q200
Bourns Inc. CR2010-JW-510ELF	200 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	51 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	5 %
Bourns Inc. CR2010-JW-222ELF	200 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	2200 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	5 %
Bourns Inc. CR2010-FW-R050ELF	200 ppm/°C	2010 (5025 Metric)	0.5 W	0.5 W	Thick Film	2	0.05 Ohms	0.197 in	0.098 in	5 mm	2.5 mm	155 °C	-55 °C	2010	0.7 mm	0.028 in	1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.06
Newark	Each (Supplied on Full Reel)	1	$ 0.09
		5000	$ 0.08
		10000	$ 0.07
		20000	$ 0.06
		30000	$ 0.05
		50000	$ 0.05

Description

General part information

CR2010 Series

3.3 kOhms ±1% 0.5W, 1/2W Chip Resistor 2010 (5025 Metric) Automotive AEC-Q200 Thick Film
