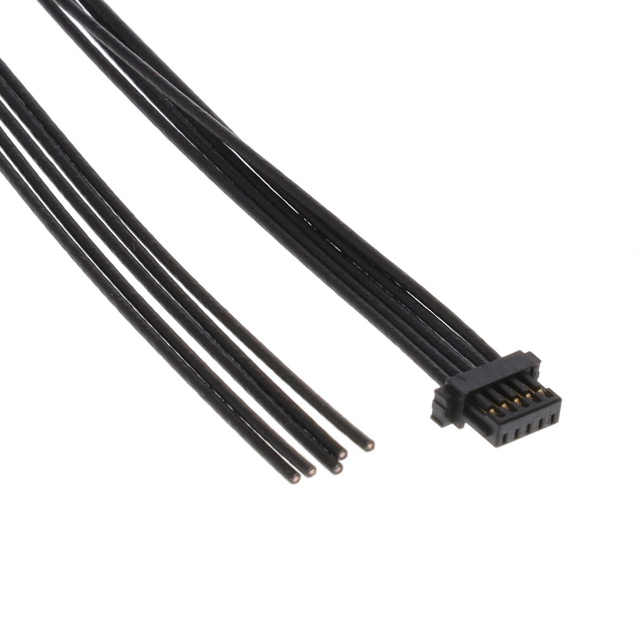

S1SS-05-28-GF-20.00-S
ActiveSamtec Inc.
S1SS 1MM CABLE ASSEMBLY
Deep-Dive with AI
Search across all available documentation for this part.
S1SS-05-28-GF-20.00-S
ActiveSamtec Inc.
S1SS 1MM CABLE ASSEMBLY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S1SS-05-28-GF-20.00-S |
|---|---|
| Cable Termination | Crimp |
| Connector Type | Socket to Individual Wire Leads |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Length | 508 mm |
| Length | 1.67 ft |
| Number of Rows | 1 |
| Pitch - Connector | 0.039 " |
| Pitch - Connector | 1 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.70 | |
| 10 | $ 5.90 | |||
| 25 | $ 5.33 | |||
| 50 | $ 4.94 | |||
| 100 | $ 4.58 | |||
| 250 | $ 4.17 | |||
| 500 | $ 3.88 | |||
| 1000 | $ 3.63 | |||
| 2500 | $ 3.34 | |||
Description
General part information
S1SS-05 Series
5 Position Cable Assembly Rectangular Socket to Individual Wire Leads 1.67' (508.00mm)
