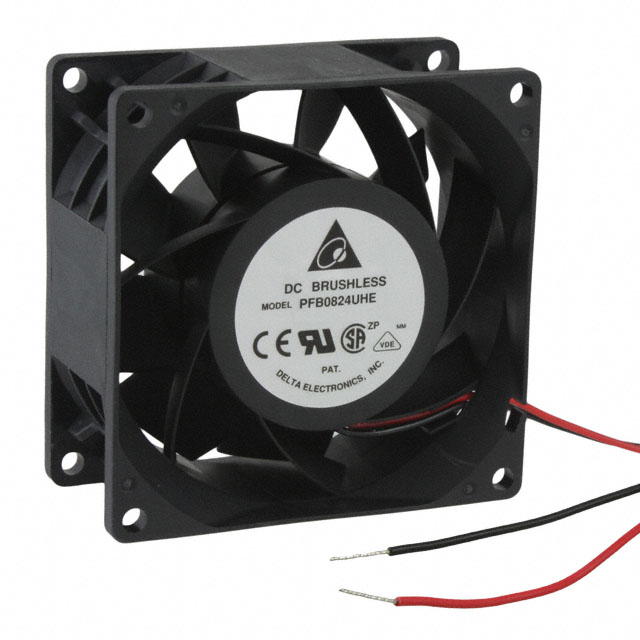

PFB0824UHE-T500

Active

Delta Electronics

DC FAN AXIAL BALL 24V 14V TO 26.4V 107.3CFM 61DB 80 X 80 X 38MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans, Electric - Component UL Cert +2

PFB0824UHE-T500

Active

Delta Electronics

DC FAN AXIAL BALL 24V 14V TO 26.4V 107.3CFM 61DB 80 X 80 X 38MM

Deep-Dive with AI

DocumentsDatasheet Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFB0824UHE-T500

Air Flow	3 m³/min
Air Flow	107.3 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	770 mA
Fan Type	Tubeaxial
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	61 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	18.48 W
RPM	7500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	1.368 in H2O
Static Pressure	340.8 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	200.03 g
Weight	0.441 lb
Width [y]	38 mm

PFB0824 Series

Part	Lifetime @ Temp.	Air Flow	Air Flow	Approval Agency	Fan Type	Power (Watts)	Material - Frame	Features	Noise	Termination	Current Rating (Amps)	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	RPM	Bearing Type	Voltage - Rated	Material - Blade	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [y]	Ingress Protection	Operating Temperature [Max]
Delta Electronics PFB0824DHE-T50F	50000 Hrs	132.6 CFM	3.71 mł/min	CE CSA UL VDE	Tubeaxial	32.4 W	Plastic	Locked Rotor Protection Speed Sensor (Tach)	65 dB	3 Wire Leads	1.35 A	2.03 in H2O	505.7 Pa	80 mm	80 mm	9000 RPM	Ball	24 VDC	Plastic	205.02 g	0.452 lb	26.4 VDC	14 VDC	-10 °C	-10 °C	60 °C	60 °C	38 mm
Delta Electronics PFB0824UHE	50000 Hrs	107.3 CFM	3 m³/min	CE CSA UL VDE	Tubeaxial	18.48 W	Plastic		61 dB(A)	2 Wire Leads	770 mA	1.368 in H2O	340.8 Pa	80 mm	80 mm	7500 RPM	Ball	24 VDC	Plastic	200.03 g	0.441 lb	26.4 VDC	14 VDC	-10 °C	-10 °C	60 °C	60 °C	38 mm
Delta Electronics PFB0824DHE	50000 Hrs	132.6 CFM	3.71 mł/min	CE CSA UL VDE	Tubeaxial	32.4 W	Plastic		65 dB	2 Wire Leads	1.35 A	2.03 in H2O	505.7 Pa	80 mm	80 mm	9000 RPM	Ball	24 VDC	Plastic	205.02 g	0.452 lb	26.4 VDC	14 VDC	-10 °C	-10 °C	60 °C	60 °C	38 mm
Delta Electronics PFB0824UHE-F00	50000 Hrs	107.3 CFM	3 m³/min	CE CSA UL VDE	Tubeaxial	18.48 W	Plastic	Locked Rotor Protection Speed Sensor (Tach)	61 dB(A)	3 Wire Leads	770 mA	1.368 in H2O	340.8 Pa	80 mm	80 mm	7500 RPM	Ball	24 VDC	Plastic	200.03 g	0.441 lb	26.4 VDC	14 VDC	-10 °C	-10 °C	60 °C	60 °C	38 mm
Delta Electronics PFB0824UHE-T500	50000 Hrs	107.3 CFM	3 m³/min	CE CSA UL VDE	Tubeaxial	18.48 W	Plastic		61 dB(A)	2 Wire Leads	770 mA	1.368 in H2O	340.8 Pa	80 mm	80 mm	7500 RPM	Ball	24 VDC	Plastic	200.03 g	0.441 lb	26.4 VDC	14 VDC	-10 °C	-10 °C	60 °C	60 °C	38 mm	IP55 - Dust Protected Water Resistant
Delta Electronics PFB0824DHEYDG	50000 Hrs	132.6 CFM	3.71 mł/min	CE CSA UL VDE	Tubeaxial	32.4 W	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	65 dB	4 Wire Leads	1.35 A	2.03 in H2O	505.7 Pa	80 mm	80 mm	9000 RPM	Ball	24 VDC	Plastic	200.03 g	0.441 lb	27.6 VDC	12 VDC	-20 C	-20 °C	70 °C		38 mm		70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.56
		10	$ 40.52
		25	$ 36.47
		90	$ 33.43
		180	$ 31.40
		270	$ 27.35

Description

General part information

PFB0824 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 107.3 CFM (3.00m³/min) 2 Wire Leads
