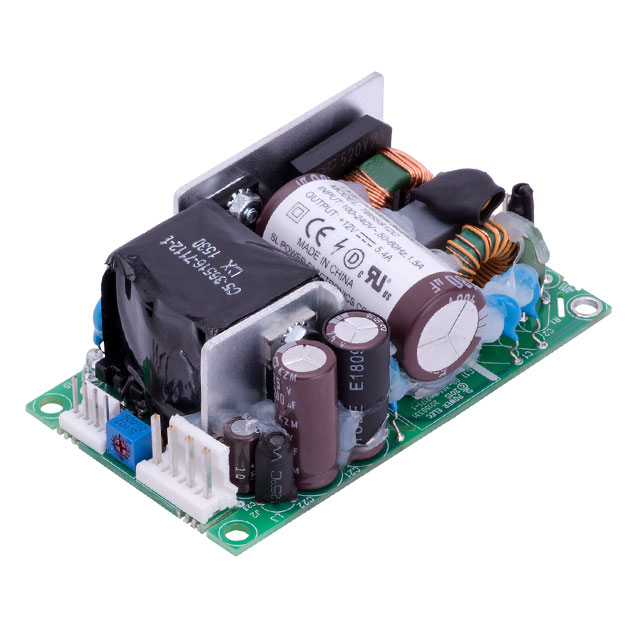

TB65S12K

Obsolete

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 5.4A 65W 11-PIN

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 5.4A 65W 11-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	TB65S12K

Applications	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE
Efficiency	88 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	88.9 mm
Size / Dimension [x]	3.5 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	33.1 mm
Size / Dimension [z]	1.3 "
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Number of Outputs	Applications	Efficiency	Mounting Type	Approval Agency	Voltage - Output 1	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Type	Minimum Load Required
SL POWER / Advanced Energy TB65S12C	1	ITE (Commercial)	88 %	Chassis Mount	CE cURus DEMKO	12 V	Adjustable Output Universal Input	33.1 mm	50.8 mm	88.9 mm	2 in	1.3 "	3.5 in	3000 V	-20 °C	70 °C	Open Frame
SL POWER / Advanced Energy TB65S12K	1	ITE (Commercial)	88 %	Chassis Mount	CE cURus DEMKO	12 V	Adjustable Output Universal Input	33.1 mm	50.8 mm	88.9 mm	2 in	1.3 "	3.5 in	3000 V	-20 °C	70 °C	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
