842-104-500-201
ActiveEDAC Inc.
842 HIGH TEMP' SERIES (.100" (2.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-104-500-201
ActiveEDAC Inc.
842 HIGH TEMP' SERIES (.100" (2.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-104-500-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 104 |
| Number of Positions/Bay/Row [custom] | 52 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
842-104 Series
| Part | Termination | Color | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Material - Insulation | Features | Contact Material | Number of Positions | Read Out | Contact Finish | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Termination Rows | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Gender | Contact Type | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Green | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Card Extender | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in |
EDAC Inc. | Solder Eyelet(s) | Green | Diallyl Phthalate (DAP) | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in | ||||
EDAC Inc. | Solder | Green | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Card Extender | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in |
EDAC Inc. | Solder | Green | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Card Extender | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in | ||
EDAC Inc. | Solder | Green | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Diallyl Phthalate (DAP) | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in | |
EDAC Inc. | Solder | Green | Flush Mount M3 Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in | |||
EDAC Inc. | Wire Wrap | Green | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in | |
EDAC Inc. | Wire Wrap | Green | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in | |
EDAC Inc. | Wire Wrap | Green | Diallyl Phthalate (DAP) | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in | ||||
EDAC Inc. | Solder | Green | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | Copper Alloy | 104 | Dual | Gold | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 52 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Female | Cantilever | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 155.75 | |
Description
General part information
842-104 Series

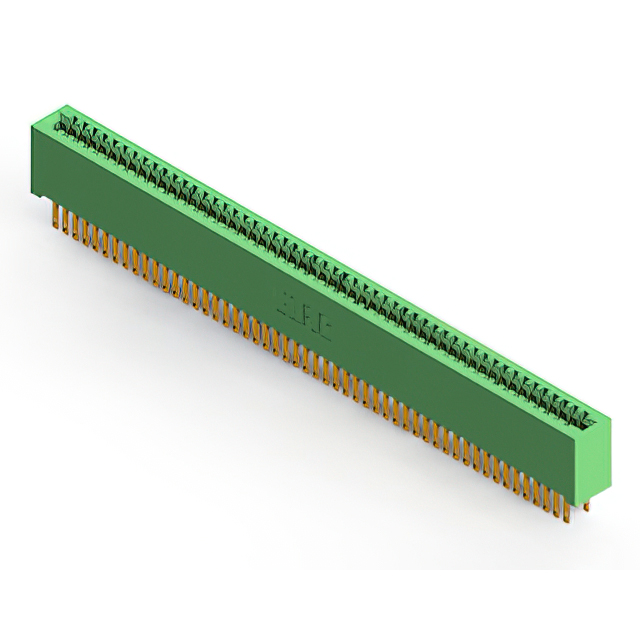

104 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
