TB4MB

Active

Switchcraft Inc.

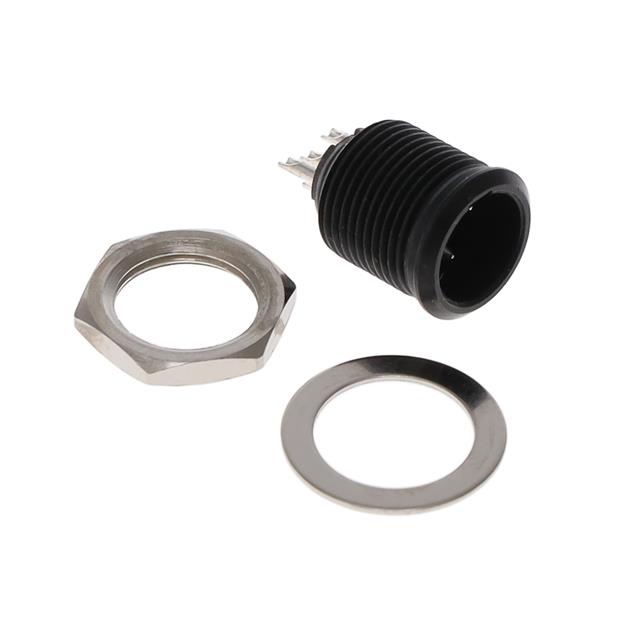

CONN MINI XLR CONNECTOR M 4 POS SOLDER CUP ST PANEL MOUNT 4 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN MINI XLR CONNECTOR M 4 POS SOLDER CUP ST PANEL MOUNT 4 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TB4MB	TB4M Series

Applications	Audio	Audio, Medical
Color	Black	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 A
Fastening Type	Latch Lock	Latch Lock
Features	Ground	Ground
Ingress Protection	-	IP66, IP65
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Nickel, Chrome
Shell Material	Copper Alloy	Copper Alloy
Shell Size - Insert	Mini XLR	Mini XLR
Voltage Rating	125 VAC	125 VAC

CONN RCPT ML MINI XLR 4P SDR CUP

Part	Voltage Rating	Mounting Feature	Fastening Type	Orientation	Shell Size - Insert	Shell Material	Shell Finish	Connector Type	Number of Positions	Primary Material	Contact Finish - Mating	Applications	Insert Material	Ingress Protection	Color	Current Rating (Amps)	Contact Material	Features	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. TB4MS	125 VAC	Bulkhead - Rear Side Nut	Latch Lock	Keyed	Mini XLR	Copper Alloy	Nickel	Male Pins, Receptacle	4	Metal	Silver	Audio, Medical	Thermoplastic	IP65, IP66	Silver	5 A	Copper Alloy
Switchcraft Inc. TB4MB	125 VAC	Bulkhead - Rear Side Nut	Latch Lock	Keyed	Mini XLR	Copper Alloy	Chrome	Male Pins, Receptacle	4	Metal	Silver	Audio	Thermoplastic		Black	5 A	Copper Alloy	Ground	UL94 V-0	85 °C	-55 °C
