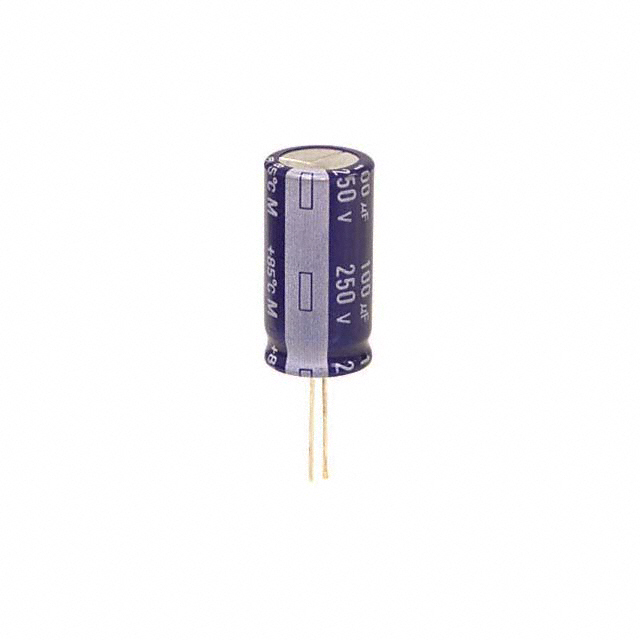

ECA-2EM101

Active

Panasonic Industrial Automation Sales

CAP ALUM 100UF 20% 250V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECA-xxM Spec Sheet ECA-xxM Series, Type A

ECA-2EM101

Active

Panasonic Industrial Automation Sales

CAP ALUM 100UF 20% 250V RADIAL

Deep-Dive with AI

DocumentsECA-xxM Spec Sheet ECA-xxM Series, Type A

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-2EM101

Applications	General Purpose
Capacitance	100 µF
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	901 mA
Ripple Current @ Low Frequency	530 mA
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	250 V

ECA-2EM Series

Part	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Lead Spacing	Lead Spacing	Applications	Polarization	Tolerance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Package / Case	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECA-2EM221	1.581 A	42 mm	1.654 in	2000 Hrs	-25 °C	85 °C	Through Hole	7.5 mm	0.295 in	General Purpose	Polar	20 %	250 V	0.709 "	18 mm	220 µF	Radial Can	930 mA
Panasonic Industrial Automation Sales ECA-2EM220	306 mA			2000 Hrs	-25 °C	85 °C	Through Hole	5 mm	0.197 in	General Purpose	Polar	20 %	250 V	0.394 in	10 mm	22 µF	Radial Can	180 mA	22 mm	0.866 in
Panasonic Industrial Automation Sales ECA-2EM470B	561 mA			2000 Hrs	-25 °C	85 °C	Through Hole	5 mm	0.197 in	General Purpose	Polar	20 %	250 V	0.492 in	12.5 mm	47 µF	Radial Can	330 mA	27 mm	1.063 in
Panasonic Industrial Automation Sales ECA-2EM4R7	146.2 mA	12.5 mm	0.492 in	2000 Hrs	-25 °C	85 °C	Through Hole	3.5 mm	0.138 in	General Purpose	Polar	20 %	250 V	0.315 "	8 mm	4.7 µF	Radial Can	86 mA
Panasonic Industrial Automation Sales ECA-2EM2R2	85 mA			2000 Hrs	-25 °C	85 °C	Through Hole	2.5 mm	0.098 in	General Purpose	Polar	20 %	250 V	0.248 in	6.3 mm	2.2 µF	Radial Can	50 mA	12.2 mm	0.48 "
Panasonic Industrial Automation Sales ECA-2EM101	901 mA			2000 Hrs	-25 °C	85 °C	Through Hole	7.5 mm	0.295 in	General Purpose	Polar	20 %	250 V	0.63 in	16 mm	100 µF	Radial Can	530 mA
Panasonic Industrial Automation Sales ECA-2EM100	187 mA			2000 Hrs	-25 °C	85 °C	Through Hole	5 mm	0.197 in	General Purpose	Polar	20 %	250 V	0.394 in	10 mm	10 µF	Radial Can	110 mA	17 mm	0.669 in
Panasonic Industrial Automation Sales ECA-2EM100B	187 mA			2000 Hrs	-25 °C	85 °C	Through Hole	5 mm	0.197 in	General Purpose	Polar	20 %	250 V	0.394 in	10 mm	10 µF	Radial Can	110 mA	17 mm	0.669 in
Panasonic Industrial Automation Sales ECA-2EM470	561 mA			2000 Hrs	-25 °C	85 °C	Through Hole	5 mm	0.197 in	General Purpose	Polar	20 %	250 V	0.492 in	12.5 mm	47 µF	Radial Can	330 mA	27 mm	1.063 in
Panasonic Industrial Automation Sales ECA-2EM010B	57.8 mA			2000 Hrs	-25 °C	85 °C	Through Hole	5 mm	0.197 in	General Purpose	Polar	20 %	250 V	0.248 in	6.3 mm	1 µF	Radial Can	34 mA	12.2 mm	0.48 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.75
		10	$ 1.31
		50	$ 1.20
		100	$ 0.98
		500	$ 0.78
		1000	$ 0.69
		2500	$ 0.65
		5000	$ 0.62

Description

General part information

ECA-2EM Series

100 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

Documents

Technical documentation and resources

ECA-xxM Spec Sheet

Datasheet

ECA-xxM Series, Type A

Datasheet
