341-041-524-104

Active

EDAC Inc.

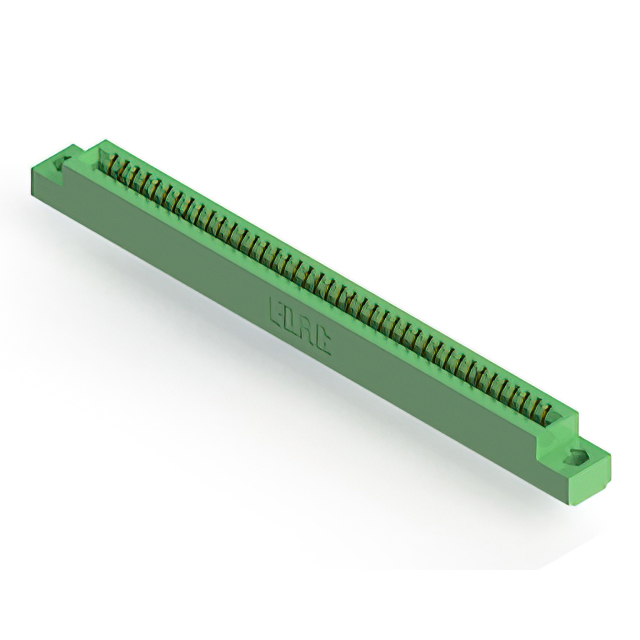

CARD EDGE CONNECTOR, 41 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-041-524-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, 41 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-041-524-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	41
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

341-041 Series

Part	Pitch [x]	Pitch [x]	Termination	Flange Feature	Mounting Type	Read Out	Card Type	Contact Finish	Contact Material	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Material - Insulation	Gender	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-041-521-107	2.54 mm	0.1 in	Solder	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1
EDAC Inc. 341-041-500-108	2.54 mm	0.1 in	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1
EDAC Inc. 341-041-521-108	2.54 mm	0.1 in	Solder	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1
EDAC Inc. 341-041-522-103	2.54 mm	0.1 in	Solder	Floating Bobbin Flush Mount	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	0.116 in	2.95 mm
EDAC Inc. 341-041-500-104	2.54 mm	0.1 in	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	0.156 in	3.96 mm
EDAC Inc. 341-041-500-103	2.54 mm	0.1 in	Solder Eyelet(s)	Floating Bobbin Flush Mount	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	0.116 in	2.95 mm
EDAC Inc. 341-041-500-107	2.54 mm	0.1 in	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1
EDAC Inc. 341-041-500-101	2.54 mm	0.1 in	Solder Eyelet(s)		Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1
EDAC Inc. 341-041-521-104	2.54 mm	0.1 in	Solder	Flush Mount Top Opening Unthreaded	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	0.156 in	3.96 mm
EDAC Inc. 341-041-524-104	2.54 mm	0.1 in	Solder	Flush Mount Top Opening Unthreaded	Through Hole	Single	Non Specified - Single Edge	Gold	Copper Alloy	41	Green	10 Áin	0.25 Ám	1	Polyester Thermoplastic	Female	Semi Bellows	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	1	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.94
LCSC	Piece	1	$ 14.67
		200	$ 5.68
		500	$ 5.48
		1000	$ 5.38
Newark	Each	1	$ 20.04
		100	$ 16.17
		250	$ 13.45
		500	$ 12.97
		1000	$ 11.45

Description

General part information

341-041 Series

41 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
