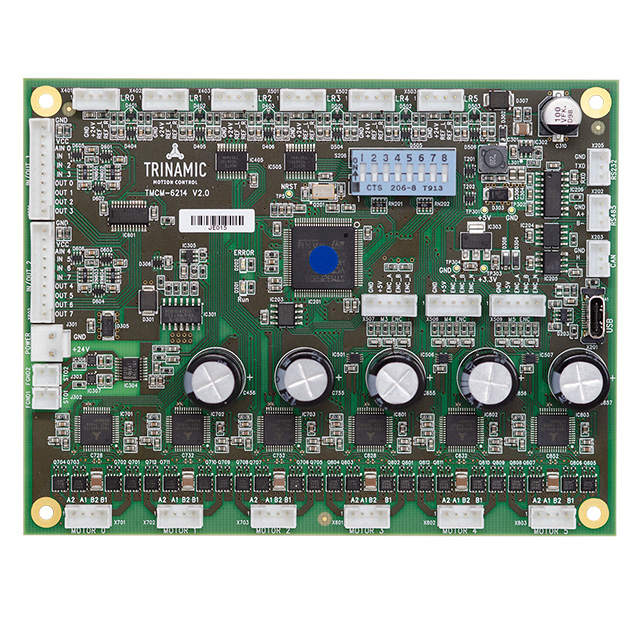

TMCM-6214-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 2A 10-30V
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-6214-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 2A 10-30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-6214-TMCL | TMCM-6214 Series |
|---|---|---|
| Accessory Type | - | Cable Assembly |
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 2 A | 2 A |
| For Use With/Related Products | - | TMCM-6214 Series |
| Interface | CAN, USB, RS-232, RS-485 | CAN, USB, RS-232, RS-485 |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Motors | 6 | 6 |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Specifications | - | 200 mm |
| Type | Board | Board |
| Usage | - | Motor |
| Voltage - Load [Max] | 30 V | 30 V |
| Voltage - Load [Min] | 9 V | 9 V |
| Voltage - Supply | 24 VDC | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 384.07 | |
| 10 | $ 348.01 | |||
TMCM-6214 Series
STEPPER DRIVER 2A 10-30V
| Part | Number of Motors | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Type | Voltage - Supply | Control / Drive Type | Motor Type | Mounting Type | Interface | Current - Output | For Use With/Related Products | Usage | Specifications | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-6214-CANOPEN | 6 | -30 ░C | 40 °C | 30 V | 9 V | Board | 24 VDC | Bipolar, Stepper | Stepper | Chassis Mount | CAN, RS-232, RS-485, USB | 2 A | ||||
Analog Devices Inc./Maxim Integrated TMCM-6214-CABLE | TMCM-6214 Series | Motor | 200 mm | Cable Assembly | ||||||||||||
Analog Devices Inc./Maxim Integrated TMCM-6214-TMCL | 6 | -30 ░C | 40 °C | 30 V | 9 V | Board | 24 VDC | Bipolar, Stepper | Stepper | Chassis Mount | CAN, RS-232, RS-485, USB | 2 A |
Description
General part information
TMCM-6214 Series
Stepper, Bipolar 24VDC Supply 2A 9 ~ 30V Load
Documents
Technical documentation and resources
No documents available
