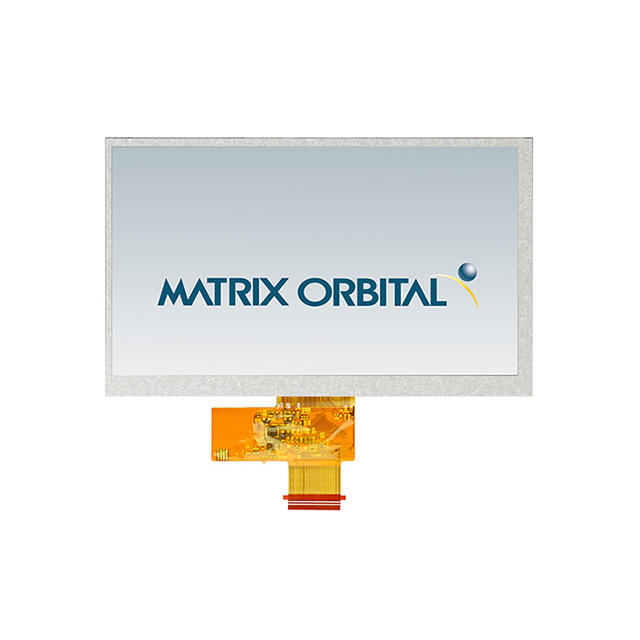

MOP-TFT800480-70A-BLM-TPN

Obsolete

Matrix Orbital

7.0" LCD TFT DISPLAY

Search across all available documentation for this part.

Obsolete

Matrix Orbital

7.0" LCD TFT DISPLAY

Technical Specifications

Parameters and characteristics for this part

Part	Controller Type	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Touchscreen	Touchscreen	Touchscreen	Display Type	Backlight	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [x]	Viewing Area [y]	Graphics Color	Interface	Interface	Display Mode	Dot Pixels	Dot Pitch [y]	Dot Pitch [x]	Diagonal Screen Size	Diagonal Screen Size
Matrix Orbital MOP-TFT800480-50A-IPS-BLH-TPN	HX8264+HX8664	127 mm	5 in	Capacitive	Resistive	Non-Touch	TFT - Color IPS (In-Plane Switching)	LED	480	800	110.7 mm	67.4 mm	Blue Green Red	Parallel	24 Bit
Matrix Orbital MOP-TFT800480-50A-BLM-TPC		127 mm	5 in	Capacitive			TFT - Color	LED	480	800	109.3 mm	66.1 mm	Blue Green Red	Parallel	24 Bit	Transmissive	WVGA
Matrix Orbital MOP-TFT800480-70A-BLM-TPR				Resistive			TFT - Color	LED	480	800	155.08 mm	86.92 mm	Blue Green Red	Parallel	24 Bit	Transmissive	WVGA	0.18 mm	0.19 mm	177.8 mm	7 in
Matrix Orbital MOP-TFT800480-70A-BLM-TPC				Capacitive			TFT - Color	LED	480	800	155.08 mm	86.92 mm	Blue Green Red	Parallel	24 Bit	Transmissive	WVGA	0.18 mm	0.19 mm	177.8 mm	7 in
Matrix Orbital MOP-TFT800480-70G-BLM-TPC				Capacitive			TFT - Color	LED	480	800	154.84 mm	86.63 mm	Blue Green Red	Parallel	24 Bit	Transmissive	WVGA	0.18 mm	0.19 mm	177.8 mm	7 in
Matrix Orbital MOP-TFT800480-70A-BLM-TPN							TFT - Color	LED	480	800	153.84 mm	85.63 mm	Blue Green Red	Parallel	24 Bit	Transmissive	WVGA	0.18 mm	0.19 mm	177.8 mm	7 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 7" (177.80mm) 800 x 480 (WVGA)
