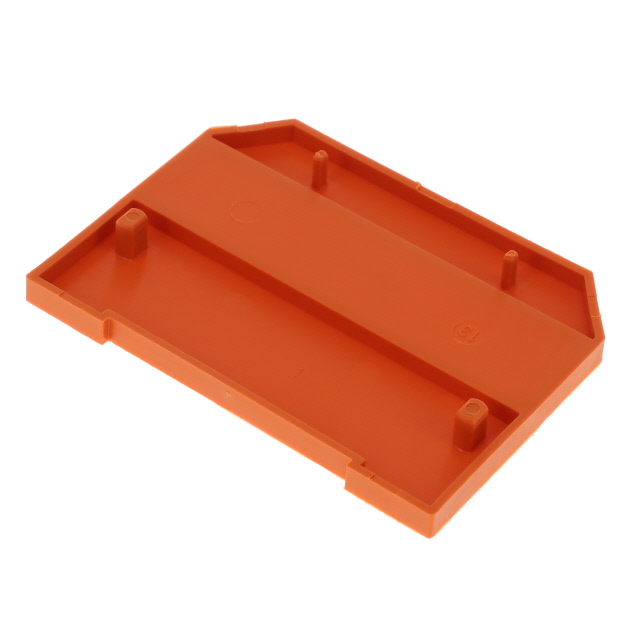

282-312

Active

WAGO Corporation

END AND INTERMEDIATE PLATE; 4 MM

Search across all available documentation for this part.

Active

WAGO Corporation

END AND INTERMEDIATE PLATE; 4 MM

Technical Specifications

Parameters and characteristics for this part

Specification	282-312

For Use With/Related Products	Terminal Blocks
Type	End Plate

Part	Terminal - Width [y]	Material - Insulation	Voltage - IEC	Termination Style	Disconnect Type	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Stripping Length [Min]	Stripping Length [Max]	Number of Positions	Color	For Use With/Related Products	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Fuse Type [y]
WAGO Corporation 282-696	8 mm	Polyamide (PA66) Nylon 6/6	400 V	Push In Spring	Fuse	1	10 AWG	24 AWG	30 A	0.2 mm²	6 mm²	Disconnect	12 mm	13 mm	2	Gray
WAGO Corporation 282-681	8 mm	Polyamide (PA66) Nylon 6/6	800 V	Push In Spring		1	10 AWG	24 AWG	41 A	0.2 mm²	6 mm²	Feed Through	12 mm	13 mm		Gray
WAGO Corporation 282-328												End Plate					Terminal Blocks
WAGO Corporation 282-687	8 mm	Polyamide (PA66) Nylon 6/6		Push In Spring		1	10 AWG	24 AWG		0.2 mm²	6 mm²	Ground Earth	12 mm	13 mm		Green Yellow
WAGO Corporation 282-901	8 mm	Polyamide (PA66) Nylon 6/6	800 V	Push In Spring		1	10 AWG	24 AWG	41 A	0.2 mm²	6 mm²	Feed Through	12 mm	13 mm	2	Gray
WAGO Corporation 282-317												End Plate					Terminal Blocks
WAGO Corporation 282-333												End Plate					Terminal Blocks
WAGO Corporation 282-312												End Plate					Terminal Blocks
WAGO Corporation 282-698/281-434	8 mm	Polyamide (PA66) Nylon 6/6	400 V	Push In Spring	Fuse	1	10 AWG	24 AWG	30 A			Disconnect	12 mm	13 mm	2	Gray		LED Indicator	6 mm˛	0.2 mm˛
WAGO Corporation 282-128	13 mm		500 V	Screw	Fuse Screw Cap	1	10 AWG	24 AWG	10 A	0.2 mm²	6 mm²	Disconnect	12 mm	13 mm	2	Gray					0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector End Plate For Terminal Blocks

Technical documentation and resources

No documents available
