06GEEW3EM

Active

Delta Electronics

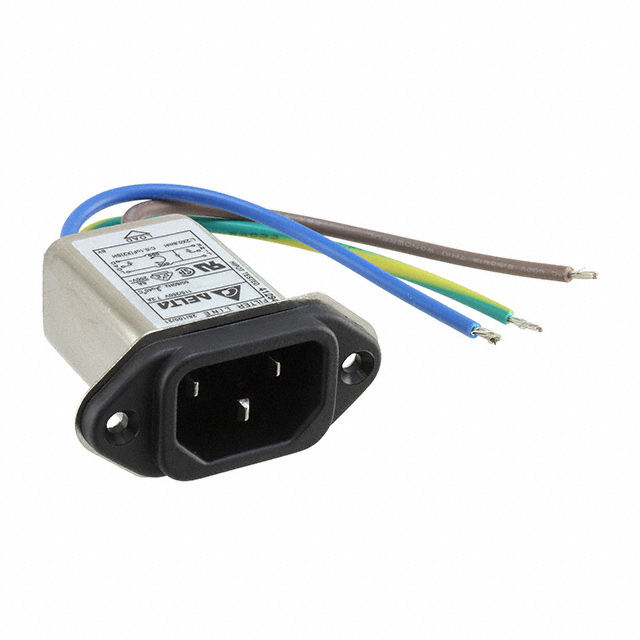

PWR ENT RCPT IEC320-C14 PNL WIRE

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	06GEEW3EM

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm
Panel Cutout Dimensions [y]	21.6 mm
Termination	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT RCPT IEC320-C14 PNL WIRE

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Connector Type	Accomodates a Fuse	Mounting Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type	Approval Agency	Current Rating - Filter	Connector Style	Termination
Delta Electronics 06GEEW3EM	21.6 mm	28.45 mm	6 A	Male Blades, Receptacle		Flange, Panel Mount	115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial, Medical	CSA, UL, VDE	6 A	IEC 320-C14	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	168	$ 6.58

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange

Technical documentation and resources
