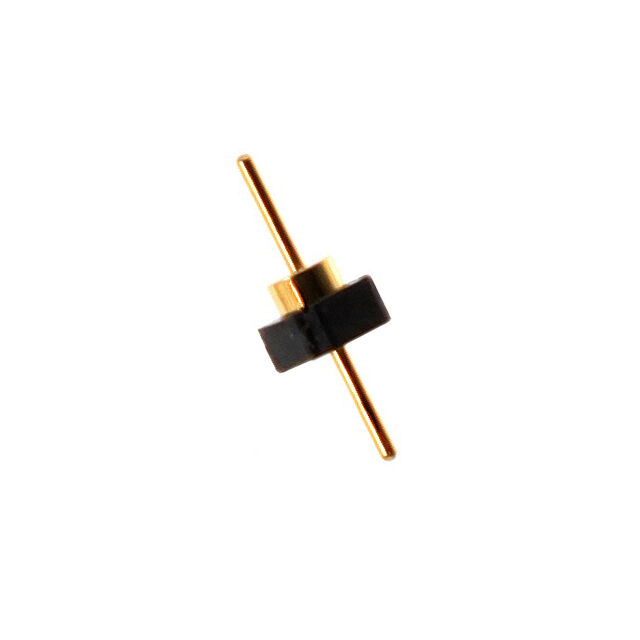

364-10-101-00-580000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 1POS

Deep-Dive with AI

Search across all available documentation for this part.

364-10-101-00-580000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 1POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	364-10-101-00-580000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.085 "
Insulation Height	2.15 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	8.38 mm
Overall Contact Length	0.33 in
Shrouding	Unshrouded
Termination	Solder

364-10 Series

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Termination	Contact Shape	Contact Finish - Post	Insulation Material	Insulation Height	Insulation Height	Number of Rows	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Type	Fastening Type	Contact Material	Number of Positions
Mill-Max Manufacturing Corp. 364-10-115-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm	15	10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy
Mill-Max Manufacturing Corp. 364-10-120-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm	20	10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy
Mill-Max Manufacturing Corp. 364-10-129-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm	29	10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy
Mill-Max Manufacturing Corp. 364-10-110-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm	10	10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy
Mill-Max Manufacturing Corp. 364-10-125-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm		10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy
Mill-Max Manufacturing Corp. 364-10-119-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm	19	10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy
Mill-Max Manufacturing Corp. 364-10-116-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm		10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy	16
Mill-Max Manufacturing Corp. 364-10-114-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm	14	10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy
Mill-Max Manufacturing Corp. 364-10-101-00-580000	Through Hole			All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm	1	10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy
Mill-Max Manufacturing Corp. 364-10-107-00-580000	Through Hole	0.1 in	2.54 mm	All	8.38 mm	0.33 in	Solder	Circular	Gold	Polycyclohexylenedimethylene Terephthalate (PCT)	0.085 "	2.15 mm	1	Header	10 çin	0.25 çm	0.125 in	3.18 mm	Gold	Unshrouded	0.12 in	3.05 mm	7	10 çin	0.25 çm	Black	Male Pin	Push-Pull	Brass Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.34
		10	$ 12.71
		100	$ 11.08
		500	$ 9.45
		1000	$ 8.67

Description

General part information

364-10 Series

Connector Header Through Hole 1 position
