EN2P2M20P

Active

Switchcraft Inc.

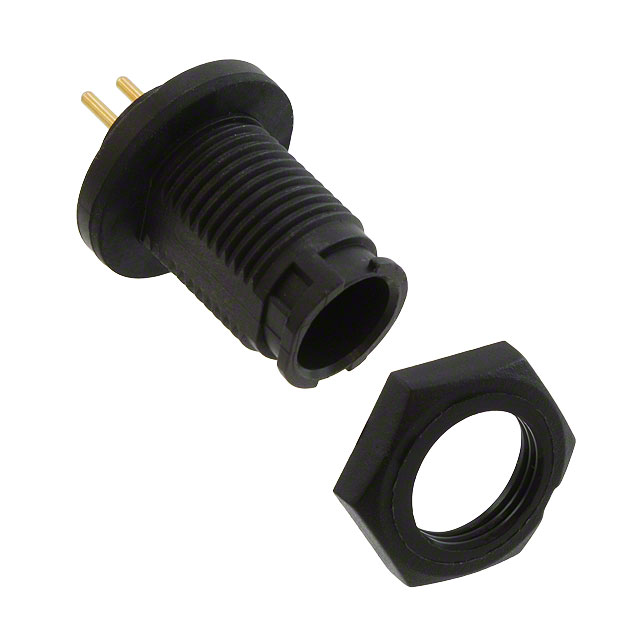

CONN RCPT MALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2P2M20P	EN2P2M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3.5 A	3.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder, Crimp, Solder Cup
Voltage Rating	250 VAC	250 VAC

CONN RCPT MALE 2POS GOLD SOLDER

Part	Orientation	Material Flammability Rating	Voltage Rating	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Color	Connector Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination	Insert Material	Fastening Type	Primary Material	Applications	Ingress Protection	Shielding	Mounting Type
Switchcraft Inc. EN2P2M20PK	Keyed	UL94 V-0	250 VAC	2	Gold	3.5 A	Black	Male Pins, Receptacle	Bulkhead - Front Side Nut	85 °C	-40 °C	Copper Alloy	Solder	Elastomer	Bayonet Lock	Plastic	Communication Systems, Industrial, Marine, Medical	IP66, IP67, IP68	Unshielded	Panel Mount, Through Hole
Switchcraft Inc. EN2P2M20P	Keyed	UL94 V-0	250 VAC	2	Gold	3.5 A	Black	Male Pins, Receptacle	Bulkhead - Front Side Nut	85 °C	-40 °C	Copper Alloy	Solder	Elastomer	Bayonet Lock	Plastic	Communication Systems, Industrial, Marine, Medical	IP66, IP67, IP68	Unshielded	Panel Mount, Through Hole
Switchcraft Inc. EN2P2M20	Keyed	UL94 V-0	250 VAC	2	Gold	3.5 A	Black	Male Pins, Receptacle	Bulkhead - Front Side Nut	85 °C	-40 °C	Copper Alloy	Crimp, Solder Cup	Elastomer	Bayonet Lock	Plastic	Communication Systems, Industrial, Marine, Medical	IP66, IP67, IP68	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
