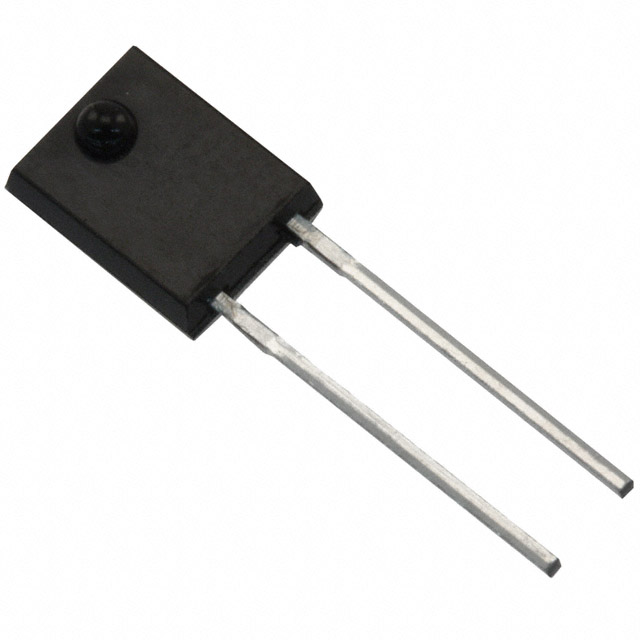

Specification	PT908-7B-F

Current - Collector (Ic) (Max)	20 mA
Current - Dark (Id) (Max)	100 nA
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	Side View
Package / Case	Side View, Radial
Voltage - Collector Emitter Breakdown (Max)	30 V
Wavelength	940 nm

PT908-7 Series

Part	Orientation	Current - Dark (Id) (Max)	Package / Case	Wavelength	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Current - Collector (Ic) (Max)
Everlight Electronics Co Ltd PT908-7C-F	Side View	100 nA	Radial Side View	940 nm	30 V	85 °C	-25 °C	Through Hole	20 mA
Everlight Electronics Co Ltd PT908-7B-F	Side View	100 nA	Radial Side View	940 nm	30 V	85 °C	-25 °C	Through Hole	20 mA
