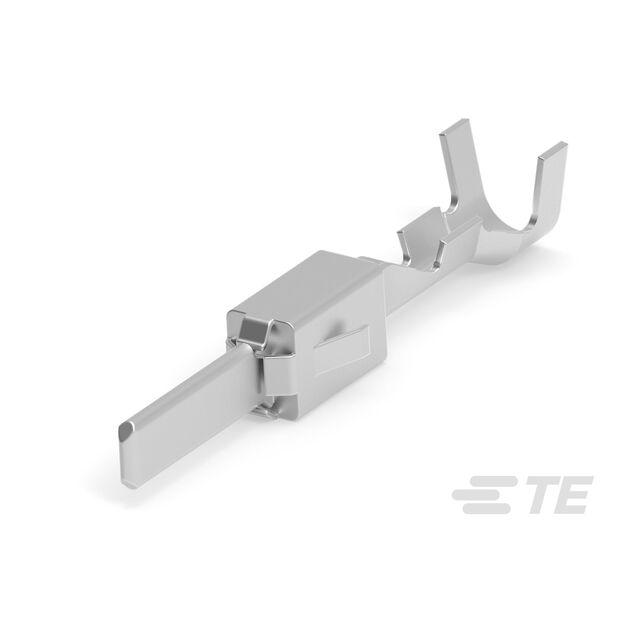

5-965982-1
ActiveTE Connectivity AMP Connectors
TAB 2.8X0.8 CONTACT CF SWS SN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-965982-1
ActiveTE Connectivity AMP Connectors
TAB 2.8X0.8 CONTACT CF SWS SN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-965982-1 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Áin |
| Contact Finish Thickness | 1 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Tab |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.21 | |||
| Tape & Reel (TR) | 3500 | $ 0.23 | ||
| 7000 | $ 0.22 | |||
| 10500 | $ 0.21 | |||
| 17500 | $ 0.20 | |||
| 24500 | $ 0.20 | |||
| 35000 | $ 0.19 | |||
965982 Series
TAB 2.8X0.8 CONTACT CF SWS SN
| Part | Pin or Socket | Contact Termination | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-965982-1 | Tab | Crimp | Tin | 20 AWG | 24 AWG | 39.4 Áin | 1 Ám |
Description
General part information
965982 Series
Tab Contact Tin 20-24 AWG Crimp
