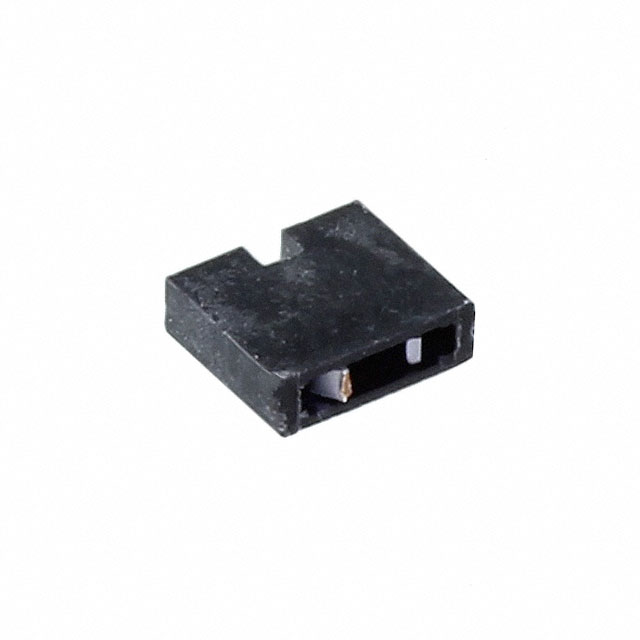

SNM-100-BK-T

Active

Samtec Inc.

JUMPER, 2 POSITIONS, SAMTEC TMS, MTMS, DWM SERIES TERMINAL STRIPS

Search across all available documentation for this part.

Active

Samtec Inc.

JUMPER, 2 POSITIONS, SAMTEC TMS, MTMS, DWM SERIES TERMINAL STRIPS

Technical Specifications

Parameters and characteristics for this part

Specification	SNM-100-BK-T

Color	Black
Contact Finish	Tin
Gender	Female Sockets
Height [z]	0.13 in
Height [z]	3.3 mm
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

Part	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch [x]	Pitch [x]	Color	Height [z]	Height [z]	Contact Finish	Type	Gender
Samtec Inc. SNM-100-BK-T	1 x 2	2	2.54 mm	0.1 in	Black	0.13 in	3.3 mm	Tin	Open Top	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Tin
