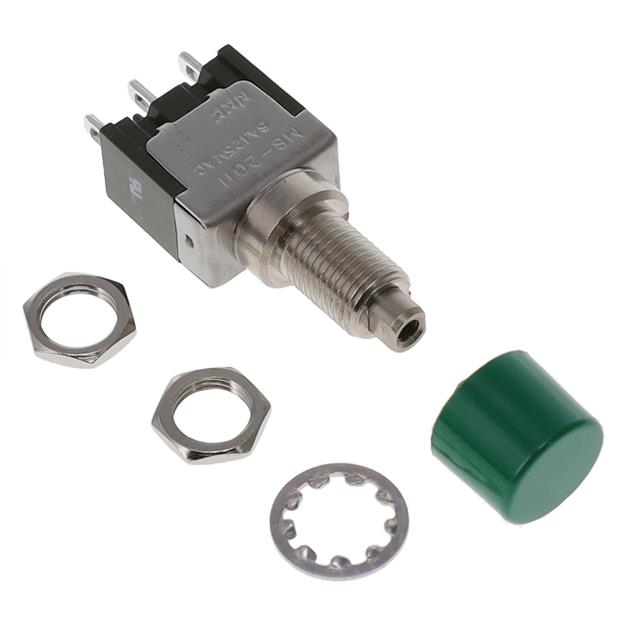

Specification	MB2011SS1W01-CF

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating	6 A, 3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Rear, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	6.5 mm
Panel Cutout Shape	Circular
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

MB2011S Series

...

Part	Type	Actuator Marking	Mounting Type	Features	Switch Function	Voltage Rating - DC	Actuator Type	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Color - Actuator/Cap	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - AC	Current Rating	Electrical Life (Cycles)	Mechanical Life (Cycles)	Ingress Protection Description	Ingress Protection IP Rating
NKK Switches MB2011SS1W01-CA	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	30 V	Button Round	SPDT	85 °C	-30 °C	Black	Solder Lug	6.5 mm	Circular	125 V	3 A 6 A	25000	100000 Cycles
NKK Switches MB2011SS2G30-CC	Standard	No Marking	Right Angle Through Hole	Epoxy Sealed Terminals	On-Mom	28 V	Button Round	SPDT	85 °C	-30 °C	Red	PC Pin			28 V	0.4 VA	50000	100000 Cycles
NKK Switches MB2011SD3G01-CC	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	28 V	Button Round	SPDT	85 °C	-30 °C	Red	Solder Lug	6.5 mm	Circular	28 V	0.4 VA	50000	50000 Cycles	Dust Tight Waterproof	IP67
NKK Switches MB2011SS1G01-BC	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	28 V	Button Round	SPDT	85 °C	-30 °C	Red	Solder Lug	6.5 mm	Circular	28 V	0.4 VA	50000	100000 Cycles
NKK Switches MB2011SS1G03-BB	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	28 V	Button Round	SPDT	85 °C	-30 °C	White	PC Pin	6.5 mm	Circular	28 V	0.4 VA	50000	100000 Cycles
NKK Switches MB2011SS1W01/CUL	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	30 V	Plunger for Cap	SPDT	85 °C	-30 °C		Solder Lug	6.5 mm	Circular	125 V	3 A 6 A	25000	100000 Cycles
NKK Switches MB2011SB1W01-4H-A	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	30 V	Button Round	SPDT	85 °C	-30 °C	Gray	Solder Lug	12.5 mm	Circular	125 V	3 A 6 A	25000	100000 Cycles
NKK Switches MB2011SB1W03-DA	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	30 V	Button Round	SPDT	85 °C	-30 °C	Black	PC Pin	12.5 mm	Circular	125 V	3 A 6 A	25000	100000 Cycles
NKK Switches MB2011SB1W03-CB	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	30 V	Button Round	SPDT	85 °C	-30 °C	White	PC Pin	12.5 mm	Circular	125 V	3 A 6 A	25000	100000 Cycles
NKK Switches MB2011SS1W01-BG	Standard	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	On-Mom	30 V	Button Round	SPDT	85 °C	-30 °C	Blue	Solder Lug	6.5 mm	Circular	125 V	3 A 6 A	25000	100000 Cycles
