PJ-044B

Active

CUI Devices

CONN PWR JACK 2.5X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2.5X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-044B

Actual Diameter	2 mm, 6.5 mm
Actual Diameter [diameter]	0.079 in, 0.256 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating	Tin
Current Rating (Amps)	2.5 A
Features	Board Guide
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth [custom]	9 mm
Mating Length/Depth [custom]	0.354 in
Mounting Type	Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Gender	Number of Positions/Contacts	Housing Material	Mounting Type	Material Flammability Rating	Shielding	Mating Length/Depth [custom]	Mating Length/Depth [custom]	Contact Material	Features	Body Color	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Actual Diameter [diameter]	Actual Diameter	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Internal Switch(s)	Termination	Contact Material - Plating	Voltage - Rated
CUI Devices PJ-044A	Male	2 Conductors 3 Conductors	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	Unshielded	9 mm	0.354 in	Brass Copper Alloy	Board Guide	Black	0.083 in 0.217 "	2.1 mm 5.5 mm	0.079 in 0.256 in	2 mm 6.5 mm	2.5 A	Jack	-25 °C	85 °C	Normally Closed Single Switch	Solder Eyelet(s)	Tin	24 VDC
CUI Devices PJ-044B	Male	2 Conductors 3 Conductors	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	Unshielded	9 mm	0.354 in	Brass Copper Alloy	Board Guide	Black	0.098 " 0.217 "	2.5 mm 5.5 mm	0.079 in 0.256 in	2 mm 6.5 mm	2.5 A	Jack	-25 °C	85 °C	Normally Closed Single Switch	Solder Eyelet(s)	Tin	24 VDC
CUI Devices PJ-044B	Male	2 Conductors 3 Conductors	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	Unshielded	9 mm	0.354 in	Brass Copper Alloy	Board Guide	Black	0.098 " 0.217 "	2.5 mm 5.5 mm	0.079 in 0.256 in	2 mm 6.5 mm	2.5 A	Jack	-25 °C	85 °C	Normally Closed Single Switch	Solder Eyelet(s)	Tin	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

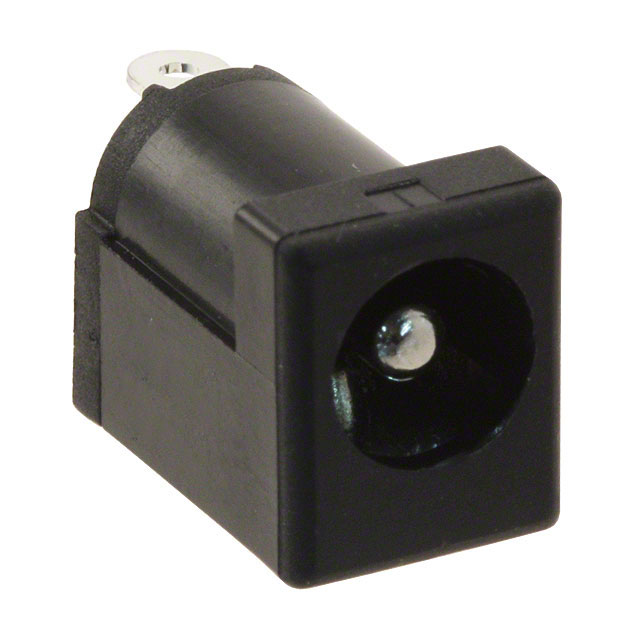

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole
