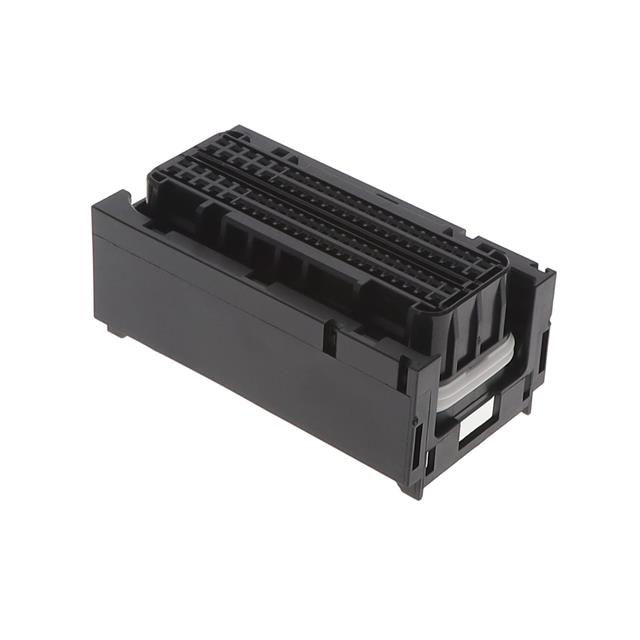

9-1452423-9
ActiveTE Connectivity Raychem Cable Protection
96 POS. CONNECTOR ASSY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9-1452423-9
ActiveTE Connectivity Raychem Cable Protection
96 POS. CONNECTOR ASSY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9-1452423-9 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 96 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Row Spacing [x] | 0.118 in |
| Row Spacing [x] | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.94 | |
| 10 | $ 18.34 | |||
| 25 | $ 17.54 | |||
| 50 | $ 16.98 | |||
| 100 | $ 16.41 | |||
| 252 | $ 15.51 | |||
| 504 | $ 15.05 | |||
Description
General part information
1452423 Series
96 Rectangular Connectors - Housings Plug Black
