OJ-SH-124LM,X000

Active

TE Connectivity Potter & Brumfield Relays

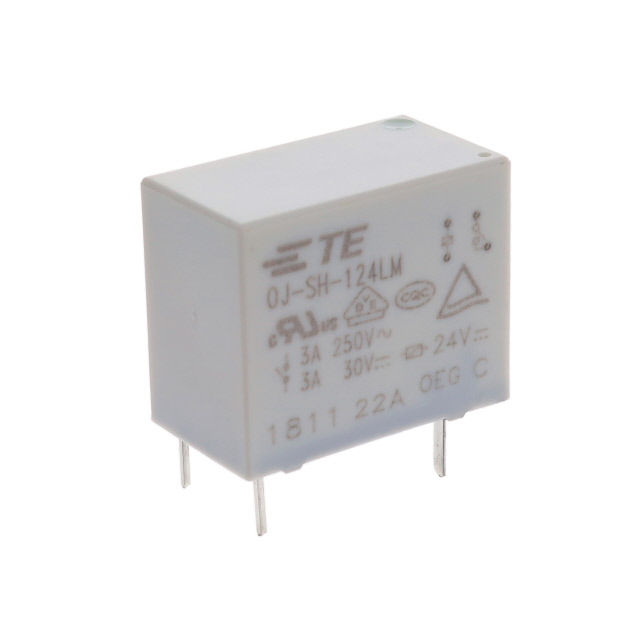

RELAY GEN PURPOSE SPST 3A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OJ-SH-124LM,X000

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 3A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OJ-SH-124LM,X000

Approval Agency	TUV, cULus, CQC, VDE
Coil Current	18.8 mA
Coil Insulation	Class F
Coil Resistance	1280 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	3 A
Load - Max Switching	831 VA, 90 W
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	10 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	277 VAC, 30 VDC
Termination Style	PC Pin

OJ-SH Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Contact Rating (Current)	Contact Material	Operate Time	Coil Resistance	Coil Voltage	Release Time	Seal Rating	Must Release Voltage	Must Operate Voltage	Relay Type	Termination Style	Contact Form	Coil Type	Load - Max Switching	Coil Insulation	Mounting Type	Switching Voltage	Coil Current
TE Connectivity Potter & Brumfield Relays OJ-SH-105HM,000	70 °C	-30 ░C	CQC cULus TUV VDE	10 A	Silver (Ag)	10 ms	55.6 Ohms	5 VDC	4 ms	Sealed - Fully	0.25 VDC	3.5 VDC	General Purpose	PC Pin	SPST-NO (1 Form A)	Non Latching	300 W 2770 VA	Class F	Through Hole	30 VDC 277 VAC	91 mA
TE Connectivity Potter & Brumfield Relays OJ-SH-112HM,000	70 °C	-30 ░C	CQC cULus TUV VDE	10 A	Silver (Ag)	10 ms	320 Ohms	12 VDC	4 ms	Sealed - Fully	0.6 VDC	8.4 VDC	General Purpose	PC Pin	SPST-NO (1 Form A)	Non Latching	300 W 2770 VA	Class F	Through Hole	30 VDC 277 VAC	37.5 mA
TE Connectivity Potter & Brumfield Relays OJ-SH-124HM,000	70 °C	-30 ░C	CQC cULus TUV VDE	10 A	Silver (Ag)	10 ms	1280 Ohms	24 VDC	4 ms	Sealed - Fully	1.2 VDC	16.8 VDC	General Purpose	PC Pin	SPST-NO (1 Form A)	Non Latching	300 W 2770 VA	Class F	Through Hole	30 VDC 277 VAC	18.8 mA
TE Connectivity Potter & Brumfield Relays OJ-SH-105DM,000	85 °C	-30 ░C	CQC cULus TUV VDE	5 A	Silver (Ag)	10 ms	55.6 Ohms	5 VDC	4 ms	Sealed - Fully	0.25 VDC	3.5 VDC	General Purpose	PC Pin	SPST-NO (1 Form A)	Non Latching	150 W 1385 VA	Class F	Through Hole	30 VDC 277 VAC	91 mA
TE Connectivity Potter & Brumfield Relays OJ-SH-124LM,X000	105 ░C	-40 °C	CQC cULus TUV VDE	3 A		10 ms	1280 Ohms	24 VDC	4 ms	Sealed - Flux Protection	2.4 VDC	18 VDC	General Purpose	PC Pin	SPST-NO (1 Form A)	Non Latching	90 W 831 VA	Class F	Through Hole	30 VDC 277 VAC	18.8 mA
TE Connectivity Potter & Brumfield Relays OJ-SH-105LMH,000	70 °C	-30 ░C	CQC cULus TUV VDE	8 A	Silver Cadmium Oxide (AgCdO)	15 ms	125 Ohms	5 VDC	4 ms	Sealed - Fully	0.25 VDC	3.75 VDC	General Purpose	PC Pin	SPST-NO (1 Form A)	Non Latching	240 W 2216 VA	Class F	Through Hole	30 VDC 277 VAC	40 mA
TE Connectivity Potter & Brumfield Relays OJ-SH-124LMH,000	70 °C	-30 ░C	CQC cULus TUV VDE	8 A	Silver Cadmium Oxide (AgCdO)	15 ms	2.88 kOhms	24 VDC	4 ms	Sealed - Fully	1.2 VDC	18 VDC	General Purpose	PC Pin	SPST-NO (1 Form A)	Non Latching	240 W 2216 VA	Class F	Through Hole	30 VDC 277 VAC	8.6 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.16
		10	$ 1.09
		25	$ 0.97
		50	$ 0.92
		100	$ 0.87
		300	$ 0.85

Description

General part information

OJ-SH Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
